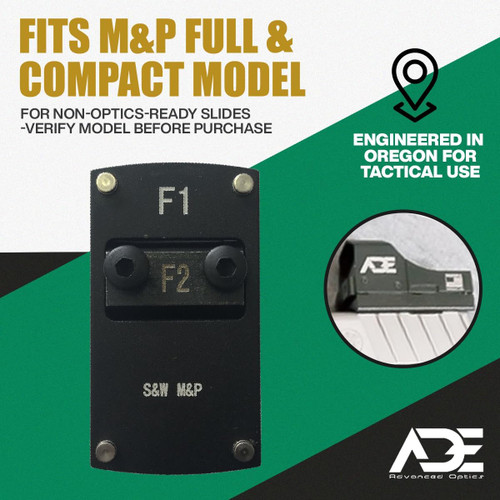

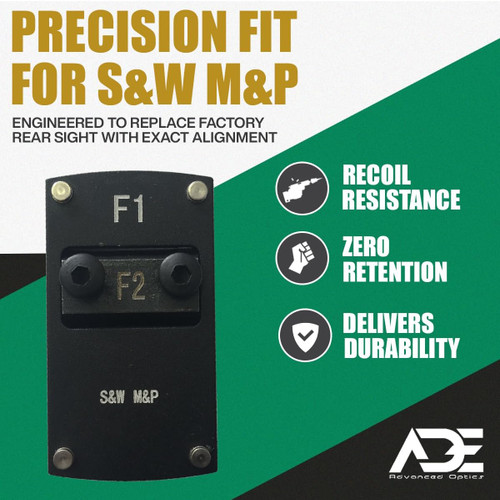

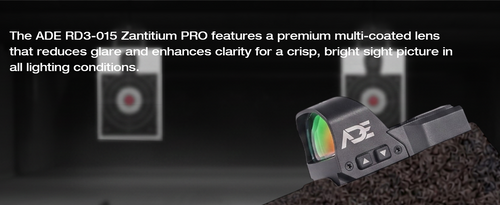

Comes with the new ADE RD3-015 PRO Zantitium PRO red dot sight, a picatinny plate, and a optic mounting plate designed to fit certain Smith Wesson Pistols.
-
-
-
This mount will fit:
- M&P Pistol – All
- M&P Shield Pistol – All
- M&P M2.0 Pistol – All
- M&P M2.0 Shield Pistol – All (not compatible with .380 EZ)
- M&P M2.0 Compact Pistol – All (not compatible with .22 version)
-
- Also fits Zigana PX9 (Non Optics ready version)
This mount does not fit:Smith & Wesson M&P C.O.R.E Series (Already optics ready)Smith & Wesson M&P Shield EZ .380Smith & Wesson M&P .22 CompactSmith & Wesson SW9VE, SW40VE, Sigma, SW9, SW40 - SD series Pistol, Including SD9, SD9VE, SD40, SD40VE
-
-
ADE is releasing the 2023 PRO SERIES for ADE RD3-015(2016-present) Zantitium red dot called Zantitium PRO(D3-015PRO). The additional features that the PRO series includes are Motion Activated System, IP67 Waterproof, and Multi Reticle Technology.
The ADE Zantitium PRO(D3-015PRO) has Motion Activated System. While Zantitium PRO is turned on, the red dot illumination goes to sleep after five minutes of inactivity, but when any motion or vibration is detected, it instantly switches on illumination at the previous brightness setting. User also has a option to manually turn the red dot power off to disable the Motion Activated System.

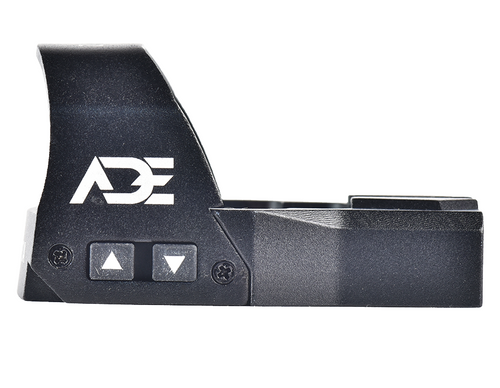

The ADE Zantitium PRO has Multi Reticle System. The reticle can be switched between a 32 MOA circle with 2 MOA dot, a 2 MOA dot only, or a 32 MOA ring only at the push of a button. Better yet, the same LED projects both reticles, so no re-zeroing is necessary. Operates with a single CR1632 battery. Press and Hold the DOWN switch for 3 seconds to manually turn on/off the power. Press and Hold the UP switch for 3 seconds to change reticle. Quick press Up/Down switches to adjust brightness.

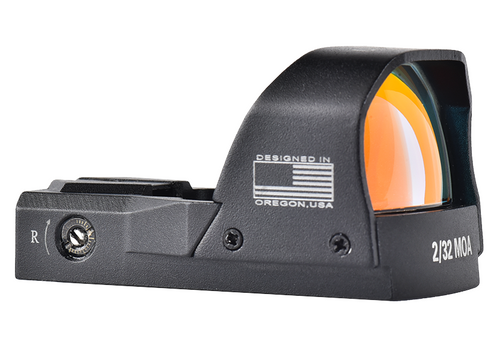

The ADE Zantitium Red dot sight is the biggest handgun sight on the market! Actual size is. 2.25" Length x 1.4" Width x 1.27" Height. It gives up to twice bigger window than other micro red dot. Keep in mind with the bigger than others size, please keep in mind when installed on micro-compact handgun will look bulky.
The size of the red dot is about 30% longer than other red dots, the window is also bigger. Therefore, it will NOT fit some Optics Ready handgun model that has a optic cut in front of the rear sight(will keep the rear sight to co-witness the red dot), such as Glock Mos, Springfield OSP. The longer length of this red dot does not sit in the pre-cut. It only fits the mounting plate that is made to REPLACE the rear sight and set on the top of the slide(not in the pre-cut).

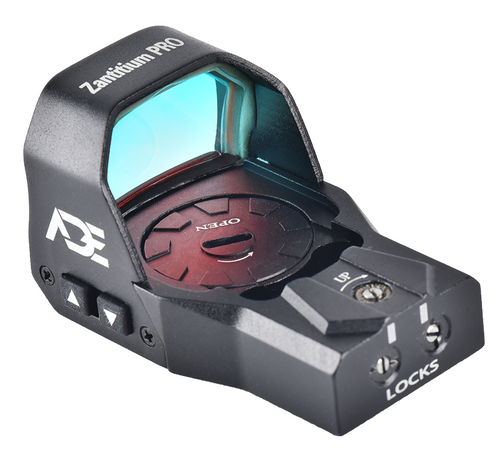

Top load System, no need to Remove the sight to change the Battery. Comes with Red dot, tool, removeable picatinny plate with two screws, cover, lens cloth and instruction manual. Fits pistol optic plate to replace the rear sight (DOES NOT FIT OPTICS READY PISTOL WITH CUT) that is compatible with Doctor/Vortex Venom/Burris Fastfire footprint. Does NOT fit RMR, Shield RMS type footprints plate.
Comes with a removeable picatinny plate tool, user manual, lens cloth, red dot cover, CR2032 battery, screws and a optics plate for certain SW pistols
----------------------------
Below are additional footprint about ADE footprints.
ADE, RD3-006 Huracan,RD3-009 Crusader,RD3-012 Delta, RD3-013 Bertrillium fit optic cut/plate that is compatible with Vortex Venom/Burris Fastfire/Doctor footprint. RD3-015 Zantitium, RD3-028 Ares fit plate(does NOT fit slide due to larger size) that is compatible with Vortex Venom/Burris Fastfire/Doctor footprint. Please note: Some aftermarket slides have a precise optic cut based on the curved edge/corner of Vortex Venom, one of the common slide manufacturers is PSA Dagger(with Doctor cut). ADE and other brand red dots do NOT have the same curve as Vortex Venom, therefore ADE RD3-006, 009, 012, 013 do NOT fit the aftermarket slide with CURVED vortex venom optic cut. ADE red dots with Doctor footprints only fit squared optic cuts that accept standard Doctor Footprints.
ADE RD3-018 Spike, RD3-021 Nuwa and RD3-030 Apollo fit optic cut/optic plate that is compatible with shield RMS/RMSC/Deltapoint Pro footprint
ADE RD3-021c NUWAcc fits optic cut/optic plate/ that is compatible with Trijicon RMRcc footprint
ADE RD3-019 Stingray RD3-020 Raptor, RD3-023 Valkyrie and RD3-029 Trumpet fit optic cut/optic plate/ that is compatible with Trijicon RMR/SRO/Holosun 407C/507C footprint
