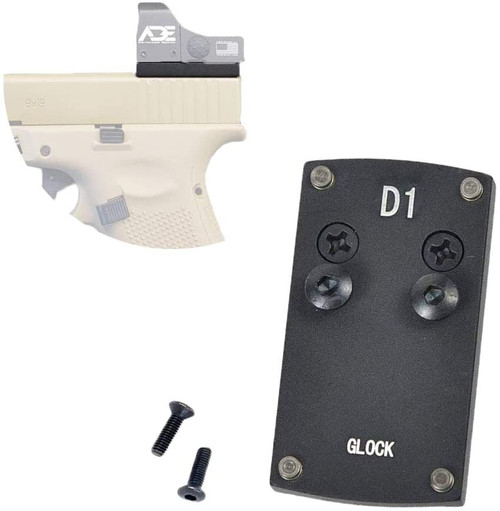

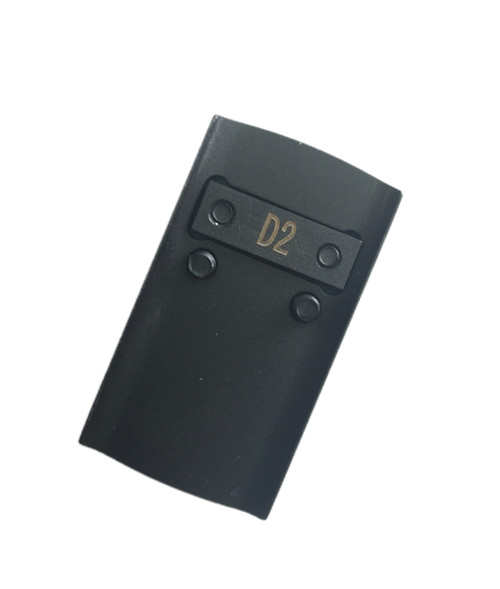

This is a optic mounting plate for Glock that replaces the factory rear sight dovetail of all Non-MOS Glocks from Glock 17 to Glock 43 to glock “100”. Does NOT fit Glock with AFTERMARKET slide with optic cut.

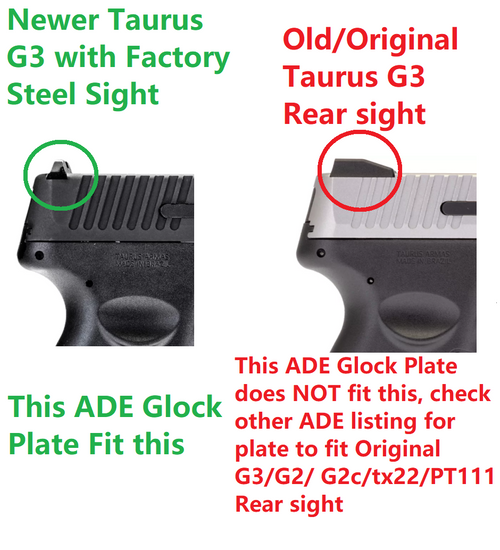

This Glock plate fits Taurus TX22 Gen2(does not compatible with old TX22), GX4, G3C & G3 with factory steel sights (does not fit any other Taurus models such as G2/G2C/G3 without factory steel sight/Tx22/PT111) because those pistols made the rear sight dovetail based on the Glock rear sight dovetail specifications.
This Glock plate also fits Canik Non-Optics ready pistols such as TP9 V2, TP9 SA, TP9 DA, TP9 SA MOD 2, TP9 SF, TP9 SFT, TP9 SFL. The rear sight dovetail dimension between those Canik pistol dovetails and Glock rear sight dovetails are the same.
Does not Fit Optic Ready Caniks, such as TP9 Elite Combat, TP9 SFx, TP9 Executive, METE or RIVAL models.
Fit Ade RD3-006A(Huracan), RD3-006B(Python), RD3-009(Crusader), RD3-012(Delta), RD3-013(Bertrillium), RD3-015(Zantitium), Vortex venom/viper, burris fastfire, meopta, shield, docter, insight Red dots.
Does Not fit trijicon rmr/holosun/shield footprint red dots

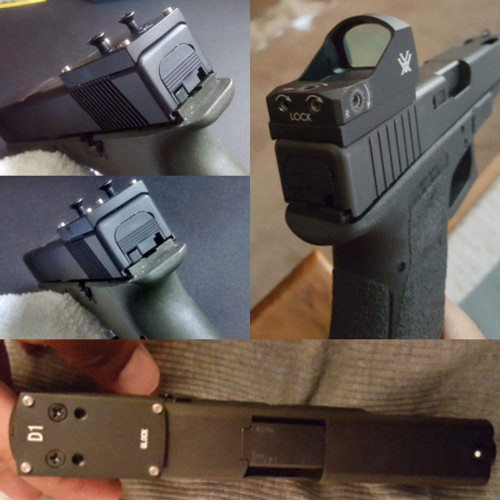

Machined from aircraft grade aluminum with hard anodizing finish. Comes with screws and hardware for installation. We highly recommend DIY only if user has gunsmith experiense, or hiring a gunsmith to install this optic plate. Unprofessional installation such as improper torque will result in screw loose, not holding zero, damage to the firearm/optic and personal injury.

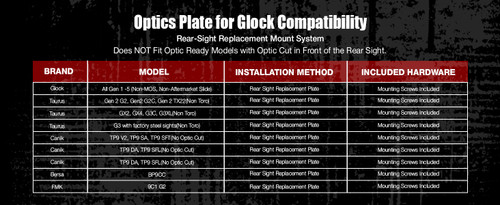

- This mount fits all generation Glocks:
Glock 17
Glock 17L
Glock 19
Glock 19x
Glock 20
Glock 21
Glock 22
Glock 23
Glock 24
Glock 26
Glock 27
Glock 29
Glock 30
Glock 30 SF
Glock 31
Glock 32
Glock 33
Glock 34
Glock 35
Glock 36 (Our mount is wider than the slide, but it will still work)
Glock 37
Glock 38
Glock 39
Glock 41
Glock 42 (Our mount is wider than the slide, but it will still work)
Glock 43 (Our mount is wider than the slide, but it will still work)
Glock 43x (Our mount is wider than the slide, but it will still work)
Glock 44
Glock 45
Glock 46
Glock 48 (Our mount is wider than the slide, but it will still work)
Canik TP9SF - Canik TP9SA
Bersa BP9CC
Tactical Solutions .22lr Conversion
Advantage Arms .22lr Conversion - FMK 9C1 G2
-
Taurus TX22 Gen2(not compatible with old Tx22 with big rear sight)
Tausur GX4,G3C -

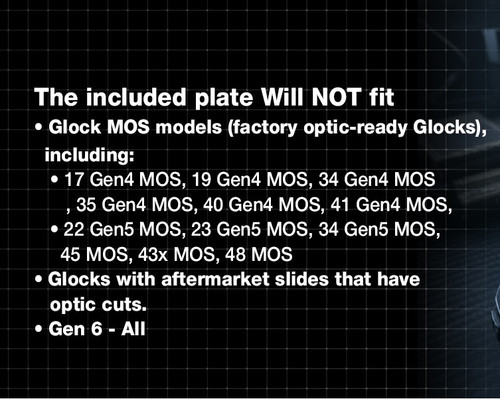

Does not fit Glock MOS models.
Glock 17 Gen 4 MOS
Glock 19 Gen 4 MOS
Glock 34 Gen 4 MOS
Glock 35 Gen 4 MOS
Glock 40 Gen 4 MOS
Glock 41 Gen 4 MOS
Glock 22 Gen 5 MOS
Glock 23 Gen 5 MOS
Glock 34 Gen 5 MOS
Glock 45 MOS
Glock 43x MOS
Glock 48 MOS - This plate does NOT fit glock with a aftermarket slide.
- Attaches firmly to your firearm for sure performance in tactical situations
- Replaces the Picatinny mount packaged with the Red dot sight
- All brands mentioned are the trademark of their respective owner, this mounting plate is an accessory made by a third party manufacture for connecting red dots to pistol.
- Red dot sight and pistol gun are not included, this listing is for mounting plate only. Mounting screws are included.
10 Reviews Hide Reviews Show Reviews
-
Optic red dot mount
I use this mounting plate to mount a red dot on my Glock 44 (22LR) - it worked great
-
Glock g42
Fit perfectly. I needed to ask this seller for help, and on the same day, he responded with an install video. I used blue Loctite on screws because I do not have a torque screw driver and all is grand now.
-
Excellent Quality/Excellent Price
The Glock 17 Mounting plate I ordered is for a Red Dot Sight. It was exactly as described and fit perfectly on my Glock 19. It is really a pleasure dealing with the Optics Factory and especially Tony. They are very helpful and have everything I need for my firearms. Thank you Tony!!!
-
Glock mounting plate
Great fit on my glock 43 . Great service . Quick delivery .
-
Red Dot Mounting Plate
Product arrived quickly, was as described and is of high quality and craftmanship but rear sight component that is to be pressed into rear sight grove is too small and falls out. Not sure if I ordered the wrong part or what. It is for a Glock 36, awaiting a response for help. Happy with product and hope I can get a replacement that fits.
-
Mounting plate
As close to a milled slide as you can get.
-
Great option
This fit on my 19x without a problem
-
Mount plate
Works as reported
-
Perfect Mount
The shipping was fast. The mount took a few minutes to install and is exactly what I needed.
-
Works as advertised
No bells and whistles to this mount. Easily installed and has not failed at the range. Good buy!
