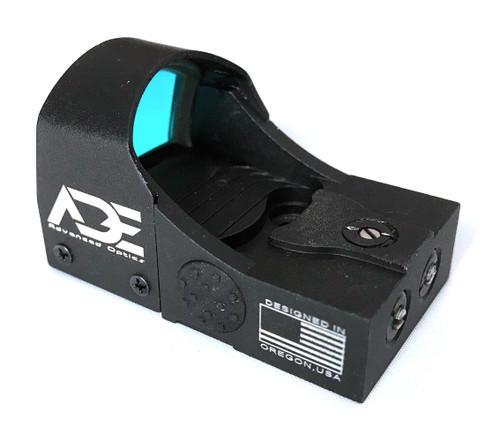

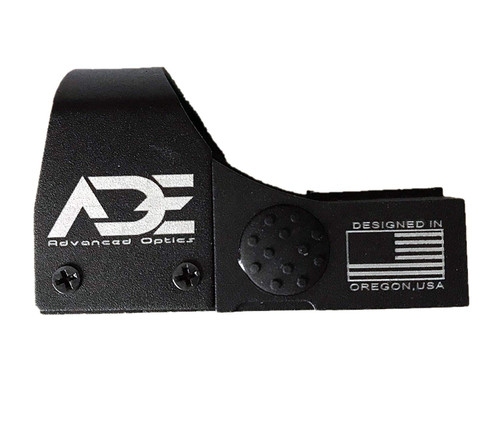

- MODEL RD3-009-2
- This is ADE's entry level red dot origianlly released in 2014. Over the years of improvement, it is one of best budget red dot for the quality at this price range. We have made it more durable to withstand recoil and improved the ability to hold zero. Designed in Oregon. Starting Jan 2024, this red dot is shipped with Motion Awake Technology.
- Starting 2024, this red dot will be shipped with the Motion Activated System. While the red dot is turned on, the red dot illumination goes to sleep after five minutes of inactivity, but when any motion or vibration is detected, it instantly switches on illumination at the previous brightness setting. Users also have the option to manually turn the red dot power off to disable the Motion Activated System.

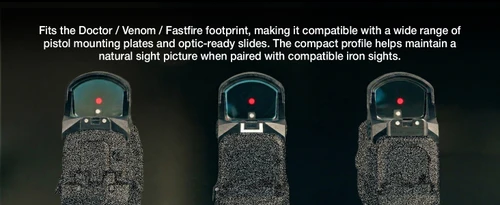

- Designed to fit optic cut/plate that is compatible with Vortex Venom/Burris Fastfire/Doctor footprint. Please note: Some aftermarket slides have a precise optic cut based on the curved edge/corner of Vortex Venom, one of the common slide manufacturers is PSA Dagger(with Doctor cut). ADE and other brand red dots do NOT have the same curve as Vortex Venom, therefore this ADE RD3-009 red dot does NOT fit the aftermarket slide with CURVED vortex venom optic cut.
- Dimension: 1.9" length x1.1" width x1.0" height. IP67 Waterproof. The lens is coated with multi-coating to eliminate glare and provide a high level of performance in low light. Lenses are precision ground and polished to exacting geometries to virtually eliminate parallax and to provide a very clear, crisp sight picture.
- Motion Awake Technology. 6 MOA. Powered by a lithium CR2032 battery. Comes with Lens cloth, Instruction Manual, Recoil Reduction Rubber Shim, Piatinny Plate, Screws for conneting Picactinny Plate, Allen Wrench, tool, Battery Opener Coin, Battery.
- Upon receiving your ADE red dot, you'll find a pre-assembled Picatinny mounting plate, either already affixed or packaged separately. Use the provided Allen wrench to remove the two M3.5X6mm screws located behind the glass frame. This detaches the red dot from the Picatinny plate, enabling attachment to various handgun mounting plates (sold separately) for customization.
- Powered by a lithium CR2032 battery(Included)
- UPC 710500199165
ADE RD3-006, RD3-009,RD3-012,RD3-013 do NOT fit Springfield HELLCAT OSP, because springfield Hellcat OSP red dot footprint is based on Shield RMS.

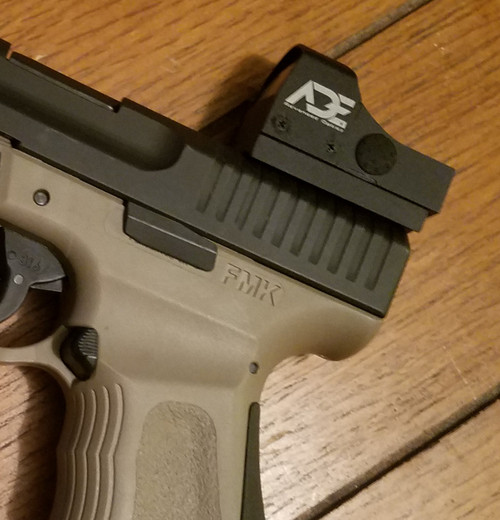

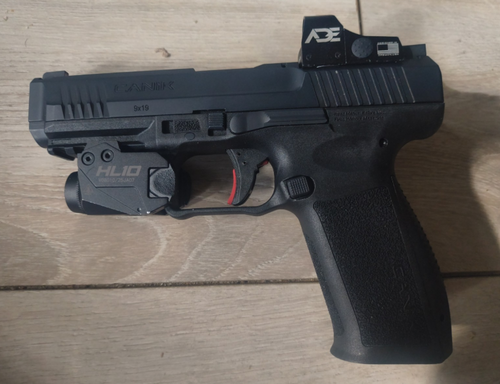

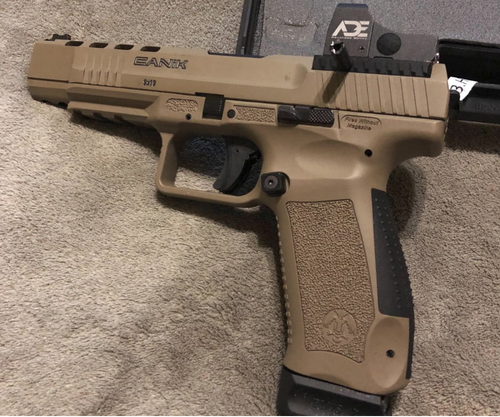

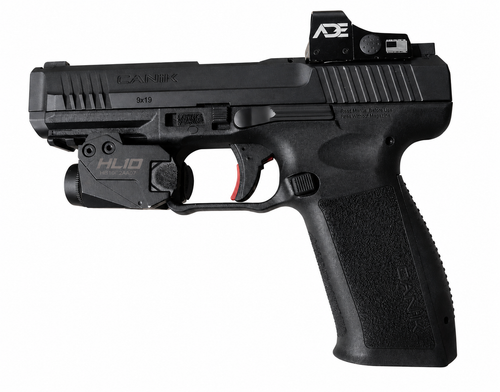

ADE sights has the footprint of Doctor/Vortex Venom type footprint. ADE RD3-006, RD3-009, RD3-012 and RD3-013 fit directly to "Optics Ready" pistols such as Glock MOS, Springfield OSP(non-hellcat), Canik TP9 SFX(non elite sc), Walter PPQ Q5 Match, FNX 45 Tactical, IWI Masada handguns that come with mounting plates that marked for DOCTOR/VORTEX VENOM type red dot. All mentioned above pistols must to be OPTICS READY model that comes with MOUNTING PLATE marked for DOCTOR/VORTEX. If not, user has to purchase after market mounting plate(not included with this red dot sight purchase) to replace the rear sight.
When you first receive the red dot. It has a picatinny mounting plate pre-assembled. Please use allen wrench provided to take out the 2 hex screws on the top behind the glass frame. It will disconnect the red dot from the picatinny mounting plate. You will then be able to attach the red dot to a variety of handgun mounting plates that are sold separately. There are many popular handguns on the market, due to the size difference of the handguns, each mounting plate is slightly different in dimensions. There are also many manufacturers making a variety of handgun plates that replace the rear sight, including ADE, Lakeline LLC, EGW, and Outerimpact. The screw comes with our red dot come with a pair of M3x6mm screws to connect to the pre-assembled picatinny mounting base. Some mounting plates made by other companies for specific handgun might need a longer screw such as M3x8mm or shorter screw such as M3x4mm depends on the thickness of the mounting plate/adapter. If you can’t get the screw to work properly, we recommend going to a local hardware store such as ACE Hardware to get the right size.
