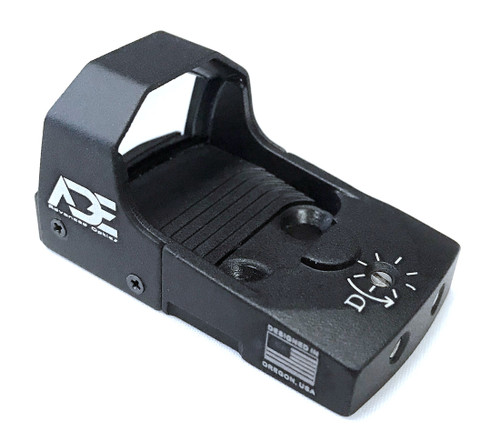

ADE RD3-006B-2 Green Dot Sight with Mounting Plate for Ruger SR22 + Standard Picatinny Mount
This listing includes:
-
ADE RD3-006B-2 Green Dot Sight
-
Mounting plate for Ruger SR22 (replaces rear sight dovetail)
-
Weaver/Picatinny-style mount (pre-installed)
-
Allen wrench, screwdriver, adjusting disc, protective cap
-
CR2032 lithium battery (installed)
-
Extra rubber sealing ring for battery compartment
-
Operating instructions
Mounting Plate Compatibility
-
Specifically designed to fit Ruger SR22 by replacing the factory rear sight dovetail.
ADE RD3-006B-2 Green Dot Sight Features
-
Motion Activated System: Green dot illumination sleeps after 5 minutes of inactivity and instantly reactivates upon detecting motion or vibration, saving battery life.
-
Front-located on/off switch for easy access, unlike many red dots with side switches.
-

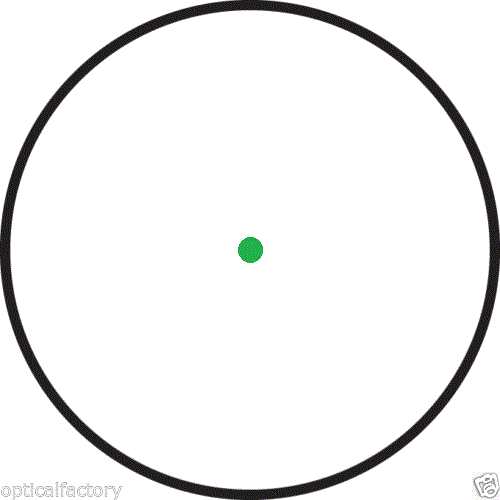

3 MOA green dot with 5 illumination brightness settings.
-
Precision-ground and polished lenses virtually eliminate parallax for a clear, crisp sight picture.
-
Fully adjustable and lockable windage and elevation with unlimited eye relief.
-
Fully shockproof and fogproof for reliable performance.
Technical Specifications
-
Magnification: 1X
-
Sight Window: 25mm x 16mm (.98" x .62")
-
Elevation Adjustment Range: 3° or 190" @ 100 yds (524 cm @ 100 m)
-
Windage Adjustment Range: 3° or 190" @ 100 yds (524 cm @ 100 m)
-
Click Value: 1 MOA or 1" @ 100 yds (60 scale divisions per turn)
-
Dot Subtension: 4 MOA (10.5 cm @ 100 m)
-
Parallax-Free Sighting Distance: Approx. 50 yds
-
Recoil Resistance: At least 1000 Gs
-
Operating Temperature: -10°F to +130°F (-25°C to +55°C)
-
Storage Temperature: -40°F to +160°F (-40°C to +70°C)
-
Power Supply: One 3V CR2032 lithium battery (included)
-
Dimensions: 2.0" x 1.0" x 1.1" (52 x 26 x 28 mm)
-
Weight (without mount): 0.9 oz (25 g)
Included in the Package
-
ADE RD3-006B-2 Green Dot Sight
-
Mounting plate for Ruger SR22
-
Weaver/Picatinny-style mount
-
Allen wrench, screwdriver, adjusting disc, protective cap
-
CR2032 lithium battery (installed)
-
Extra rubber sealing ring for battery compartment
-
Operating instructions
3 Reviews Hide Reviews Show Reviews
-
Great combo optic and mounting plate
Great fit and sighting
-
Easy to install but the dot isn't round, looks more like a cluster of three small dots.
None
-
green dot

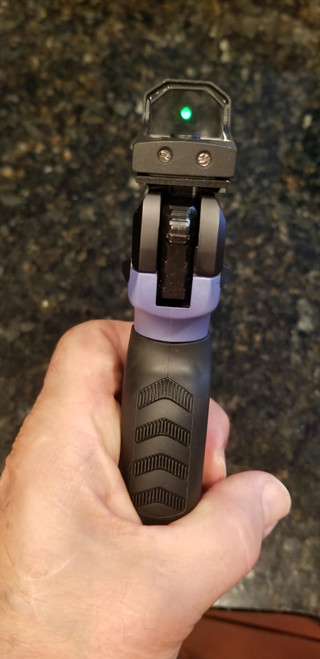

Got this for my sr22. Easy set up. Put a few hundred rounds through it so far without any issues. Definitely worth the money.
