Designed to fit
Bul Armory SAS II lightweight 3.25 Comp
Canik Elite TP9 SC

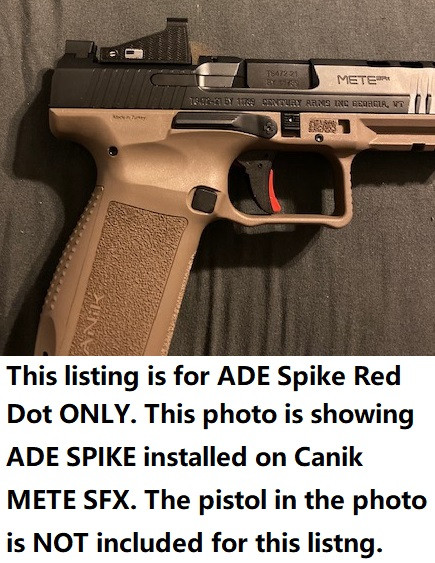

Canik METE SFX
Canik METE SFT
FNH Reflex MRD
Sig P320 Xten (Using Sig provided plate marked for Leopold Deltapoint Pro optic footprint)

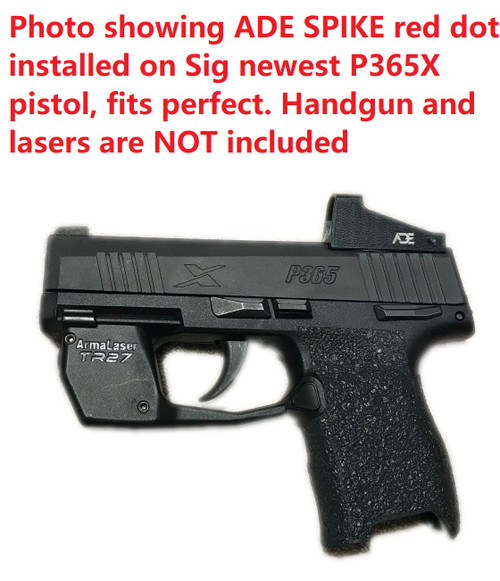

Sig P365X/P365XL/P365XL SPECTRE COMP
Sig P365 X Macro
Sig P365 California Compliant (Sig released it in late 2023/early 2024)
Sig P322
Sig P365-380(make sure your model is exactly called "P365-380", not P360 or P380)
Sccy cpx-2
Ruger Max-9
Ruger Model 43949 Mark IV 22/45 lite
Glock 43X MOS/48 MOS(not compatible with regular glock 43x/48 that are not MOS)

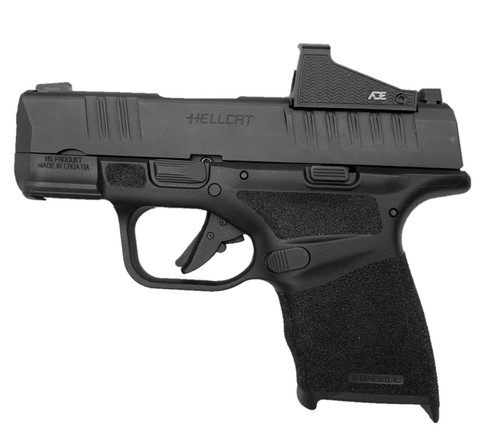

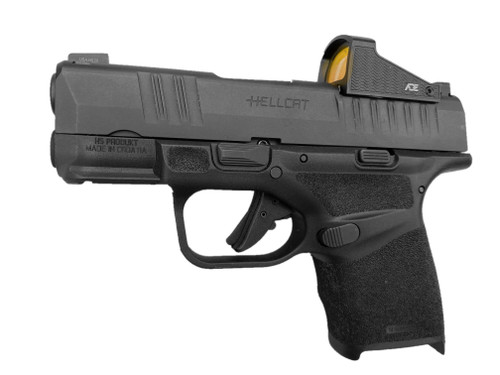

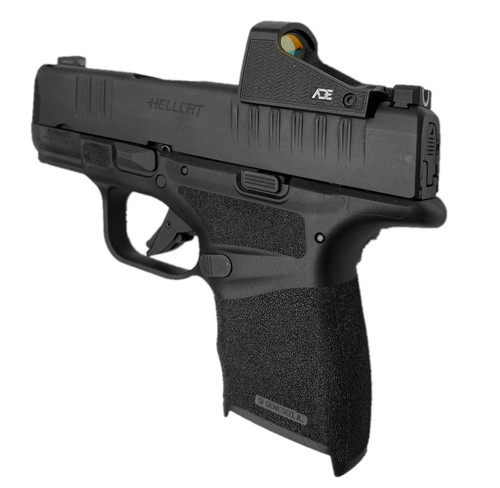

Springfield Hellcat OSP
Springfield XDS MOD 2 OSP
Springfield Elite 3.8” Compact OSP 9mm
S&W Shield 2.0 Optics Ready
S&W M&P9 shield plus Optics Ready
S&W 9mm Equalizer
S&W MP9 EZ
S&W MP 5.7(all series)
S&W M&P shield plus performance center
Walther PPS M2 Optics Ready
Girsan MC1911SC Ultimate
Mossberg MC2SC/MC2c
Mossberg 940 pro turkey
Taurus GX4 Toro
Taurus TX22 Compact
Taurus 865 Toro
Taurus 605 Toro
Masada SLIM
Rock Island STK-100
Plus any pistol/mounting plate/slide with RMS/RMSC screw pattern/footprint.

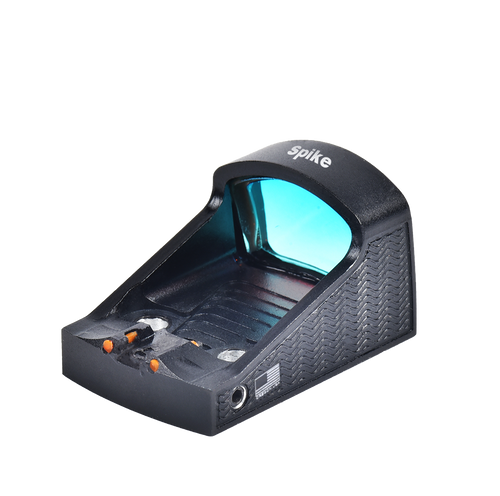

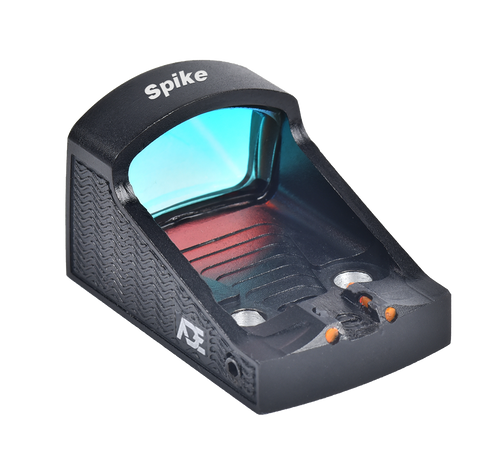

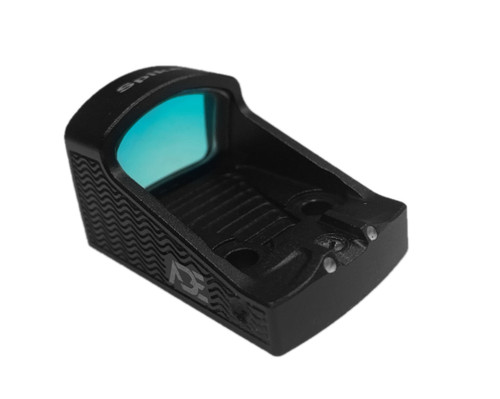

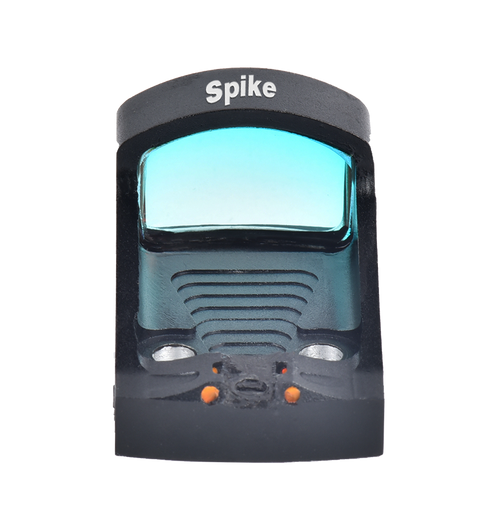

Ade SPIKE created an iron sight curve at the end of the body, and also added two white dots on the curve. For the rear of part of the red dot to become a back up iron sight. With the ultra short design, the red dot provides a distance/gap on some full size optics ready pistols, to give enough distance to be a Co-Witness back up sight, in addition to the LED dot and pistol equipped iron sight. For non-optics ready pistols that need to use an optic plate/adapter to replace the pistol manufacturer equipped rear sight, ADE Spike's rear white dot will act as a pistol factory original rear sight for Co-Witness.

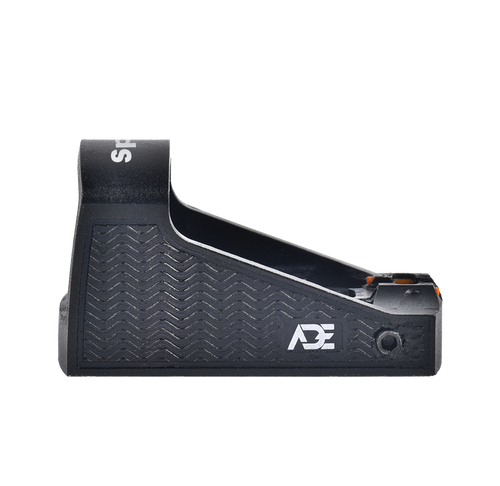

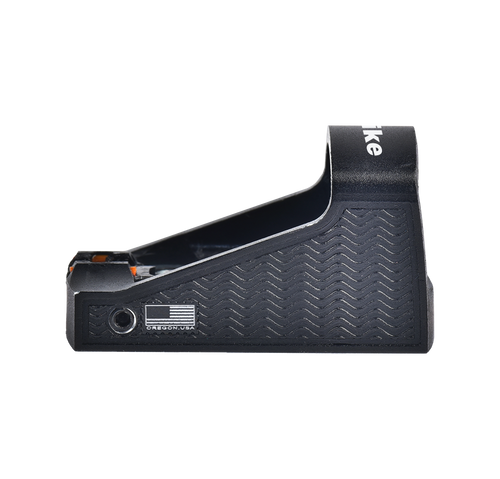

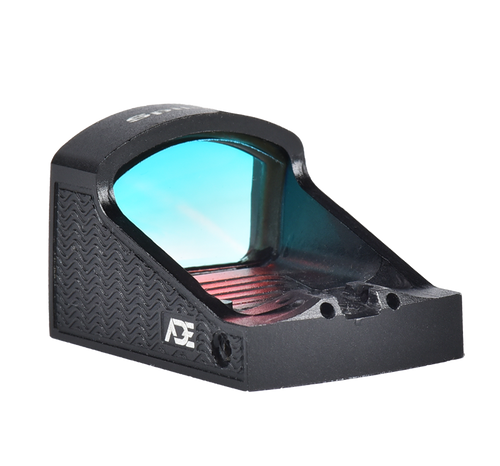

Hard coated aircraft aluminum and multi-coated glass. Not plastic body with polymer lens.
ADE SPIKE red dot sight is always powered on and features an auto-dimming sensor which regulates proper dot brightness based on ever changing ambient light conditions. Operates with a single CR2032 3v battery. With our advanced technology the sight only draws very minimum powers to give a very long battery life. The brightness will turn high and low accordingly to the environment brightness.

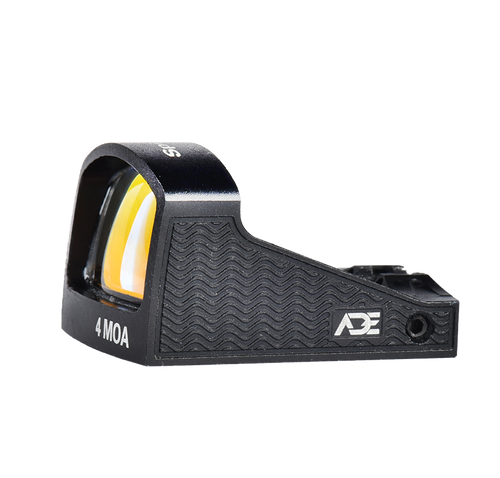

4MOA
Weight approximately .66oz/17.5grams
(Length)1.6" x (Width).92" x (Height).93"
Comes with 3 pairs of screws for Sig P365XL/X, Springfield Hellcat OSP and Canik TP9 Elite SC ONLY. The provided screws might NOT work with EVERY compatible pistol listed. ADE makes the red dot to accept the industrial standard footprint. The pistol manufacturer makes the optic cut/slide for the same footprint, but they have their own opinions to decide which type screws that the screw holes take.
ADE Does not know the screw spec every pistol manufacture used for their screw hole. Please ask the pistol manufacture what screw specs they used on the hole and ask them to provide the screw. If you can’t get the screw to work properly, we recommend going to a local hardware store such as ACE Hardware to get the right size.
Does not comes with any mounting plate such as picatinny mount or plate made for a specific handgun.
Just like some $400 competitors, It does not has a on/off power button. The light turns brighter or lower automatically. If you do not use it, put the provided rubber cover on it, then the sight will be "sleeping" in a very very low power mode.
