Item Description

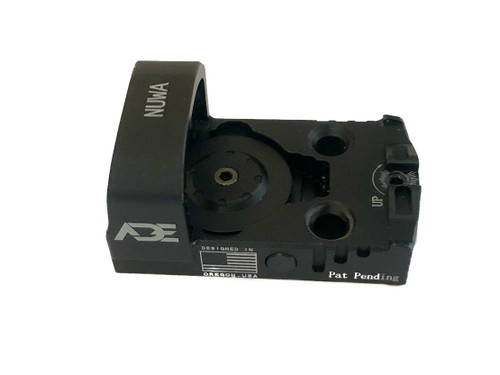

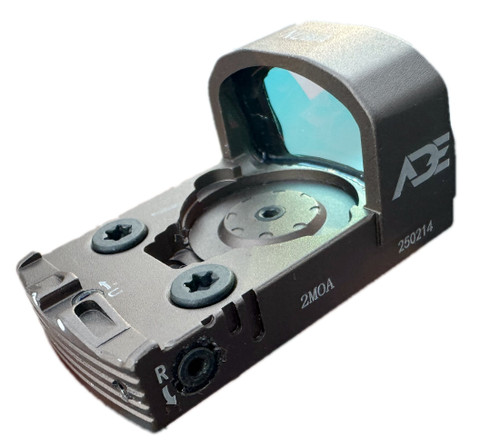

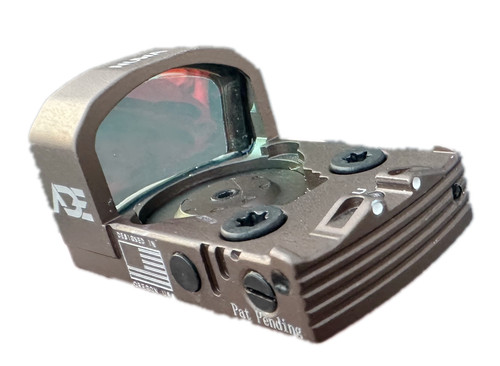

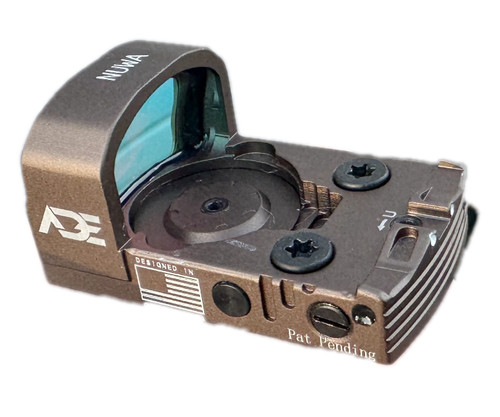

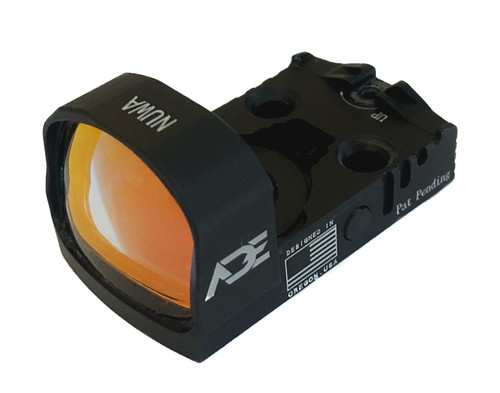

ADE NUWA PRO Micro Red Dot Sight – RMS / RMSc Footprint
Top-Loading Battery • Co-Witness Backup Sight • Manual Brightness Control

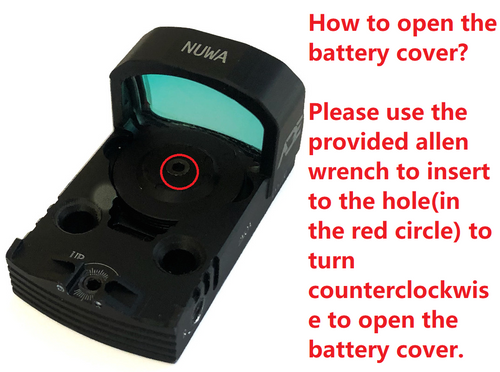

The ADE NUWA PRO is the first and only RMS / RMSc footprint red dot featuring a true TOP-LOADING BATTERY design.
You can change the battery without removing the optic, eliminating the need to re-zero and saving both time and ammunition.
-
Battery Life: Approx. 2000–5000 hours (depending on brightness setting)
For non–optics-ready pistols that require an optic plate or adapter to replace the factory rear sight, the ADE NUWA’s rear white dot functions as the original rear sight, allowing for proper co-witnessing with the red dot. This design ensures a usable backup aiming system even when the factory rear sight is removed.
The ADE NUWA is constructed from hard-coated aircraft-grade aluminum and features multi-coated glass lenses, providing superior durability, impact resistance, and optical clarity compared to red dots made with plastic housings or polymer lenses.
This optic uses a 2 MOA red dot, offering a precise aiming point suitable for both defensive and target shooting. The unit weighs approximately 15.5 grams (0.55 oz), keeping added slide mass to a minimum.
Dimensions:
-
Length: 1.5 inches
-
Width: 0.88 inches
-
Height: 0.89 inches
The ADE NUWA incorporates a rear iron sight curve built into the optic body, featuring two white dots. This allows the rear portion of the optic to function as a backup iron sight. Thanks to its ultra-short body design, the optic provides sufficient spacing on many full-size optics-ready pistols to allow co-witnessing with factory iron sights while maintaining a clear view of the LED dot.
For pistols that are not optics-ready and require a rear-sight replacement optic plate or adapter, the ADE NUWA’s rear white dot acts as a factory-style rear sight, maintaining proper sight alignment and co-witness capability.
The ADE NUWA is manually operated using the onboard control switch:
-
Press and hold for 2 seconds: Power ON / OFF
-
Quick press: Cycle brightness levels from low to high
The optic includes mounting screws for select optics-ready handguns, but does NOT include any mounting plates, Picatinny mounts, or handgun-specific adapter plates. Always verify screw compatibility with your firearm manufacturer, as screw specifications may vary even among pistols using the same footprint.
Fitment & Compatibility
This optic mounts directly to slides or mounting plates cut for the Shield RMS / RMSc footprint.
Compatible Firearms Include (but are not limited to):
✅ CZ
-
P-09C Nocturne
✅ Canik
-
TP9 Elite SC, TP9 SFT
-
TTI Combat
-
METE MC9, MC9 Prime, MC9LS
-
METE SFT / SFT Pro
-
Rival SFX
✅ Taurus
-
GX4 TORO, GX4 Carry TORO, GX4 XL TORO
-

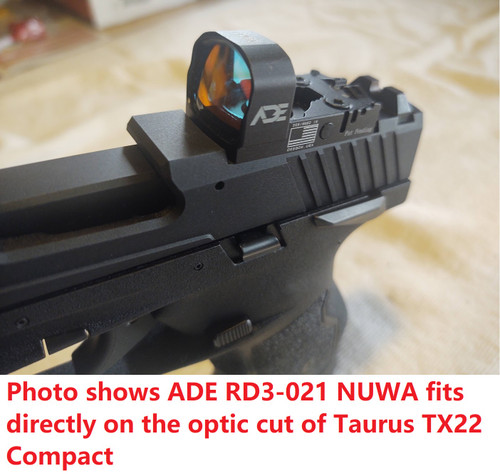

TX22 Compact, TX22 TORO
-
605 TORO, 865 TORO
✅ Beretta
-
80X Cheetah Optic Ready
✅ SIG Sauer
-
P365 Fuse, P365X, P365XL, P365X Micro
-
P365XL Spectre Comp
-
P320 Spectre Comp
-
P322
✅ Ruger
-
RXM
-
Max-9
-
Mark IV 22/45 Lite (Model 43949)
✅ Kimber
-
R7 Mako
-
Rimfire Super .22 LR
✅ FN
-
Reflex MRD
-
Reflex XL MRD
✅ Bul Armory
-
SAS II Ultralite
-
SAS II Lightweight 3.25" Comp
✅ Smith & Wesson (S&W)
-
M&P 5.7
-
CSX E-Series 3.6"
-
Equalizer 9mm
-
M&P 22 Magnum
-
M&P Shield Plus Optics Ready
-
Shield Plus Performance Center
-
Shield Plus 30 Super Carry
✅ Mossberg
-
MC2SC / MC2c
-
940 JM Pro Optic Ready
✅ IWI
-
Masada Slim
✅ Tisas
-
PX-5.7 OR
-
1911 Duty Double Stack 9mm
✅ Girsan / EAA
-
Regard MC
-
Influence MC1911
-
MC1911 SC Ultimate
-
Witness 2311
✅ Glock
-
43 MOS, 48 MOS
(Not compatible with non-MOS models)
✅ Walther
-
PPS M2 Optics Ready
-
PDP Pro SD
-
PDP Pro E Compact
✅ Stoeger
-
SRT-9MC
✅ SCCY
-
CPX-1 RDR, CPX-2 RDR
-
DVG-1 RDR
✅ Shadow Systems
-
CR920
✅ Springfield
-
XDS Mod.2 OSP 9mm
-
Elite 3.8" Compact OSP
-
Hellcat OSP, Hellcat Pro, Hellcat RDP
Also Fits
Any optic-ready slide or mounting plate that uses the standard RMS / RMSc footprint and screw pattern.
Important Screw Information
-
Screws included ONLY for:
-
SIG P365 X / XL
-
Springfield Hellcat OSP
-
Canik TP9 Elite SC
-
⚠️ Screw compatibility varies by manufacturer, even for the same footprint.
Firearm manufacturers choose their own screw thread, length, and pitch.
-
If the included screws do not work, please contact your firearm manufacturer for the correct screw specs
-
Local hardware stores (such as ACE Hardware) often carry compatible screws
Integrated Backup Iron Sight
The ADE NUWA PRO features:
-
A curved rear iron sight profile
-
Two white dots molded into the rear of the optic
This allows the optic body itself to function as a backup rear iron sight, enabling co-witness on many optic-ready pistols.
-
On optic-ready pistols: provides co-witness capability with factory front sights
-
On non-optic-ready pistols using an adapter plate: the rear white dots act as a factory-style rear sight
Operation
-
Press & hold (2 seconds): Power ON / OFF
-
Quick press: Adjust brightness from low to high
-
Manual control only (no auto-adjust or shake-awake)
What’s Included
-
ADE NUWA PRO Red Dot Sight
-
3 screw sets (P365 X/XL, Hellcat OSP, TP9 Elite SC only)
-
Instruction manual
Footprint Reference
-
Shield RMS / RMSc Footprint:
-
ADE RD3-018 Spike
-
ADE RD3-021 NUWA
-
-
Vortex Venom / Burris FastFire / Doctor Footprint:
-
ADE RD3-006B, RD3-009, RD3-012, RD3-013
-
-
Trijicon RMR Footprint:
-
ADE RD3-019 Stingray
-
ADE RD3-020 Raptor
-
ADE RD3-023 Valkyrie Gen 2
-
Shipping
-
Ships within 1 business day of cleared payment
-
Orders paid by 2:00 PM PST usually ship the same day
-
FREE U.S. SHIPPING with tracking
-
No international shipping
Returns
-
30-day return policy
-
Item must be undamaged and in like-new condition
-
Full refund or exchange available
Customer Support
Questions? Please click “Contact Seller”
We respond to all messages within 8 hours
⚠️ Legal Notice
Please ensure you can legally purchase, possess, and use this item in your jurisdiction before bidding.
You are responsible for compliance with all federal, state, and local laws.
96 Reviews Hide Reviews Show Reviews
-
Nice RDS
Looks good and brighter than expected. If you’re not seeing a dot you might want to get your eyes checked you might need some glasses to help correct that. Pros: great price, looks sturdy, real glass, battery on top easily replaced when needed, comes with cover. Cons: screws provided too short for my Canik SC, comes with cover but that cover no longer fits if RDS is not flushed with slide, shuts off after an hour or was it 90 minutes, on and off button worries me as there’s no indication it’s even pushed kind of worried this will be a fail point. Other than that seems like a good priced solid RDS. Will update once taken to range. So far laser bore sighted with minimal adjustments needed
-
Good Optic for the Money
This ADE sight is very easy to operate. Out of the box, it came with all you would need to mount without any issues. The dot has several screw types for your mounting instance. Several settings on the brightness allow for you to get a good sight picture in any lighting situation, even in bright sunlight. I've used this on my outdoor range in the daytime and was still able to visibly see the dot and stay on target. This is a good, solid dot to replace your iron sights and is not too expensive as well. I'd recommend this product if you're in the market for a new red dot optic.
-
Great little optic!!
Great little optic, easy to install and zero. I did feel the need to sand down the mounting plate because of the overhang on the sides front and back. But after a little work I think it looks great. 4 stars
-
4.0 out of 5 stars Battery not included
It’s a good sight just didn’t come with a battery
-
It’s okay
Turn on and off at first is tough. Instructions not clear.
