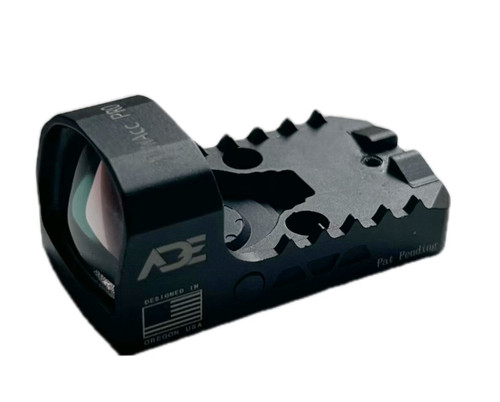

ADE NUWAcc is the first(and the only)red dot with RMRcc footprint that has TOP BATTERY LOADING system, no need to Remove the sight to change the Battery that requires re-sight in and waste ammo. Battery life approximately 500-800 depends on the brightness setting.
- Magnification: 1x
- Sight Window: 0.79″ x 0.59″ (20mm x 15mm)
- Lens: Tempered Glass
- Adjustments: 1 Tick = 3 M.O.A. (Minute of Angle)
- Adjustment Range (Elevation & Windage): 150 M.O.A. of Travel
- Dimensions (L x W x H): 1.8″ x 1″ x 0.8″ (45mm x 24mm x 21mm)
- Weight: 0.74 Oz. w/ Battery (21g)
- Illumination Source: LED Powered by CR1632 Battery
- Battery Life: 3000-10000 hours (when used at 70°F or 21°C at Setting 4 of 8)
- Brightness Settings: Automatic & 6 Daylight & 1 Night Vision
- Motion Activated Auto Sleep: 5 minutes
- Footprint: Compatible with optic cuts/plates made for RMRcc screw pattern
- Waterproof: No
- Reticle: 3 MOA green dot

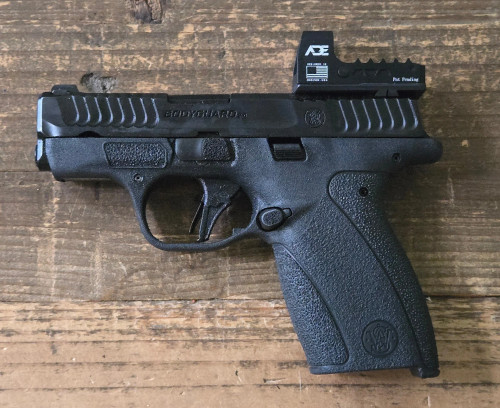

One of the first questions you might have when discussing any new micro red dot is: what will it fit? Well, as evident in the list below, the NUWAcc right out of the gate fits a multitude of the most popular concealed carry pistols on the market through either direct adaptation to the firearm (if it is an optics ready model) or through the simple addition of a mounting plate that is compatible with RMRcc footprint. USER MUST CONFIRM your pistol has the RMRcc OPTIC PLATE/CUT, otherwise it does NOT fit.
- Smith & Wesson: M&P Shield M2.0, M&P Shield M2.0 CORE, M&P 380 Shield EZ, M&P 9mm Shield EZ, M&P Bodyguard 380
- Glock: G19, G17, G22, G24, G32, G42, G43, G43X, G45, G48, etc | All MOS Guns
- Walther: PPS
- Kimber: 1911 and Ultra Carry, Micro 9
- Springfield Armory: All XDS Models, Hellcat (Iron Sight Model), Hellcat OSP
- Canik Mete SFX Pro(does not fit Mete SFX which is DDP footprint)
- Plus any pistol/mounting plate/slide with RMRcc screw pattern/footprint.
Comes with screws for several Optics Ready handguns. Does not comes with any mounting plate such as picatinny mount or plate made for a specific handgun.
With Motion Activated(Motion Awake) function, while the NUWAcc PRO is turned on, the red dot illumination goes to sleep after five minutes of inactivity, but when any motion or vibration is detected, it instantly switches on illumination at the previous brightness setting. Operates with a single CR1632 battery. 6 daylight brightness setting and 1 NV setting. The Night Vision Dot is not visible by the human eye, it is can only be seen thought a Night Vision. Battery life up to 10000 hours.

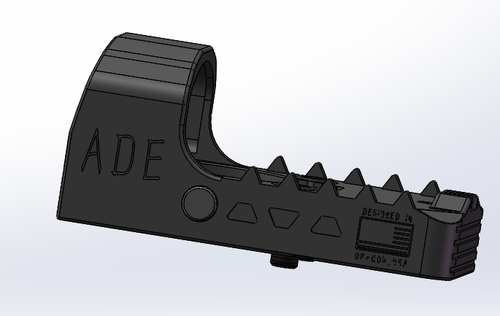

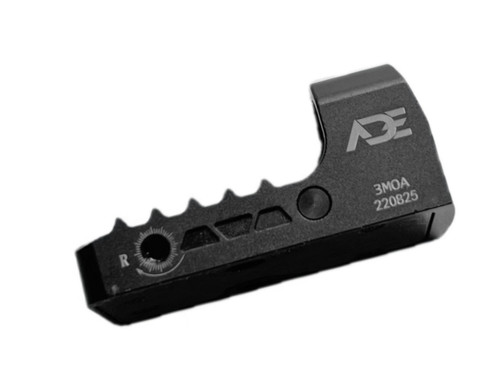

Ade NUWAcc created an iron sight curve at the end of the body, and also added two white dots on the curve. For the rear of part of the red dot to become a back up iron sight. With the ultra short design, the red dot provides a distance/gap on some full size optics ready pistols, to give enough distance to be a Co-Witness back up sight, in addition to the LED dot and pistol equipped iron sight
For non-optics ready pistols that need to use an optic plate/adapter to replace the pistol manufacturer equipped rear sight, ADE NUWA's rear white dot will act as a pistol factory original rear sight for Co-Witness.
ADE NUWAcc is manual activated by pressing the on/off switch. Press and Hold switch for 2 seconds to turn on/off, quick press to adjust the brightness from low to high.
For non-optics ready pistols that need to use an optic plate/adapter to replace the pistol manufacturer equipped rear sight, ADE NUWA's rear white dot will act as a pistol factory original rear sight for Co-Witness.
Comes with 3 pairs of screws for Sig P365XL/X, Springfield Hellcat OSP and Canik TP9 Elite SC ONLY. The provided screws might NOT work with EVERY compatible pistol listed. ADE makes the red dot to accept the industrial standard footprint. The pistol manufacturer makes the optic cut/slide for the same footprint, but they have their own opinions to decide which type screws that the screw holes take.
ADE Does not know the screw spec every pistol manufacture used for their screw hole. Please ask the pistol manufacture what screw specs they used on the hole and ask them to provide the screw. If you can’t get the screw to work properly, we recommend going to a local hardware store such as ACE Hardware to get the right size.
----------------------------
ADE RD3-006B, RD3-009, RD3-012, RD3-013 and RD3-028 fit optic cut/plate that is compatible with Vortex Venom/Burris Fastfire/Doctor footprint
ADE RD3-018 Spike, RD3-021 Nuwa(and pro) and RD3-030 Apollo fit optic cut/optic plate that is compatible with shield RMS/RMSC/Deltapoint Pro footprint
ADE RD3-019 Stingray RD3-020 Raptor, RD3-023 Valkyrie and RD3-029 Trumpet fit optic cut/optic plate/ that is compatible with Trijicon RMR/SRO/Holosun 407C/507C footprint
ADE RD3-021 NUWAcc fit optic cut/optic plate/ that is compatible with Trijicon RMRcc footprint.
-------------------------------------
