Ade Advanced Optics Shake Awake RD3-009 Compact MINI Micro Red Dot Reflex Sight Pistol + Optic mounting plate for HK USP Tactical 9mm 45ACP 40 SW

$92.99

(No reviews yet) Write a Review

SKU:

009+USP

Weight:

13.00 Ounces

Shipping:

Free Shipping

Description

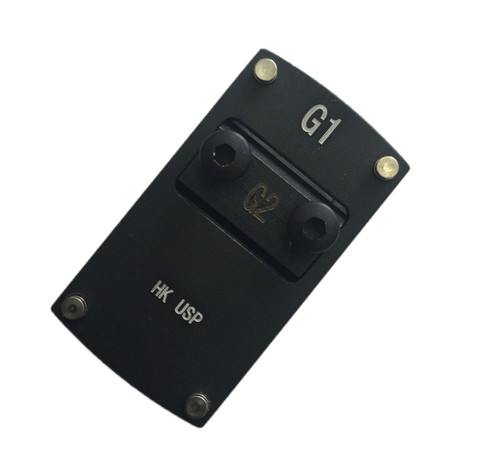

Comes with mounting plate for HK USP and also a standard picatinny mount.

The picatinny mount is for attaching to any standard picatinny/weaver mount

The HK USP dovetail has two popular width, one is 12mm, another size is 10mm. This plate fits 12mm dovetail, it does NOT fit the 10mm dovetail unless you grind/file it. Please MEASURE before purchasing. Below is a list of HK USP models come with both size 10mm and 12mm dovetails. HK made the different sizes over different production run. Need to confirm before purchasing.

USP Tactical 9mm (need to check dovetail size)

USP Tactical .45 ACP(need to check dovetail size)
USP 9mm(need to check dovetail size)
USP 40 S&W(need to check dovetail size)
USP .45 ACP(need to check dovetail size)

The mount for HK does not fit:
USP Compact (rear sight cut depth is .200" instead of .160")
USP Expert
USP Elite
VP9
VP40
P30
P30L
P30SK
HK45
HK45C

Starting 2024, this red dot will be shipped with the Motion Activated System. While the red dot is turned on, the red dot illumination goes to sleep after five minutes of inactivity, but when any motion or vibration is detected, it instantly switches on illumination at the previous brightness setting. Users also have the option to manually turn the red dot power off to disable the Motion Activated System.

Waterproof guranteed for 30 minutes under 1.7feet

Motion Awake Technology. 6 MOA. Powered by a lithium CR2032 battery. Comes with Lens cloth, Instruction Manual, Recoil Reduction Rubber Shim, Picatinny Plate, Screws for conneting Picactinny Plate, Allen Wrench, tool, Battery Opener Coin, Battery.

Lenses are precision ground and polished to exacting geometries to virtually eliminate parallax and to provide a very clear, crisp sight picture

Fully windage and elevation adjustable and lockable

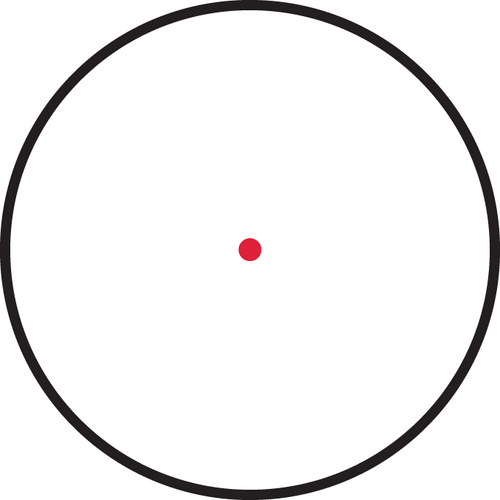

6 MOA

5 Illumination Settings.

Magnification: 1X

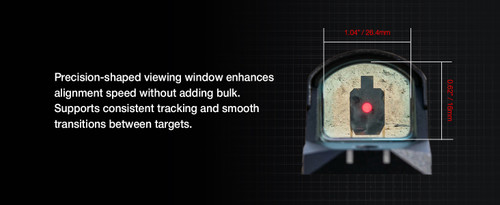

Sight Window: 25mm x 16mm; .98" x .62"

Elevation Adustment Range: 3° or 190" @ 100 yds (524 cm @ 100 m)

Windage Adjustment Range: 3° or 190" @ 100 yds (524 cm @ 100 m)

Set Value for One Scale Division: 1 MOA or 1" @ 100 yds with 60 scale divisions per turn

Subtension of the Aiming Dot: 4 MOA (10.5 cm @ 100 m)

Parallax-Free Sighting Distance: approx. 50 yds

Recoil Resistance: At least 1000 Gs
