Ade Advanced Optics RD3-006B Compact GREEN Dot Reflex Sight Pistol + Optic Plate for Beretta M9 22LR/92FS/92AF/M9/SAR B6C

$74.99
(2 reviews) Write a Review
SKU:
RD3-006B+A1
Weight:
8.00 Ounces
Shipping:
Free Shipping

ADE RD3-006B-2 Green Dot Sight with Mounting Plate for Beretta 92 Series, M9 & More + Picatinny Mount

This listing includes:

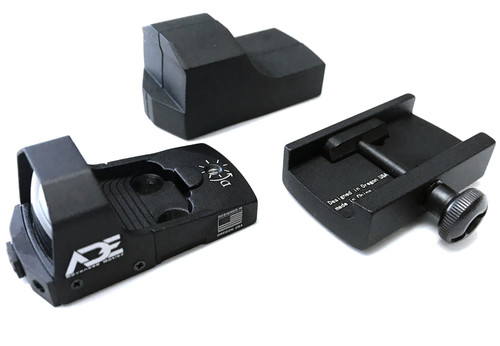

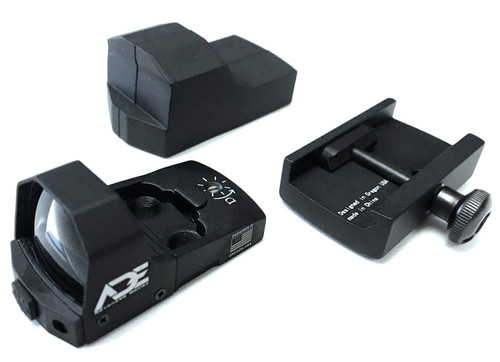

  • ADE RD3-006B-2 Green Dot Sight

  • Mounting plate for select Beretta pistols (replaces rear sight dovetail)

  • Weaver/Picatinny-style mount (pre-installed)

  • Allen wrench, screwdriver, adjusting disc, protective cap

  • CR2032 lithium battery (installed)

  • Extra rubber sealing ring for battery compartment

  • Operating instructions


Mounting Plate Compatibility

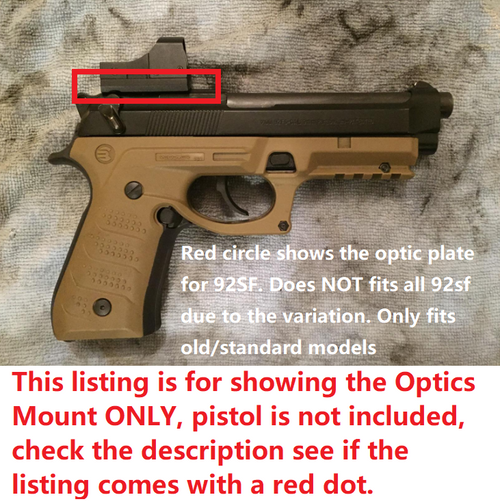

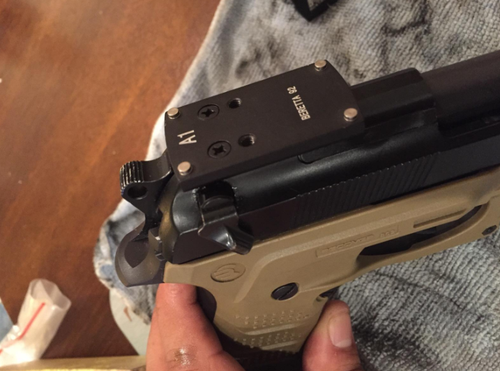

This optic mounting plate fits directly into the rear sight dovetail, replacing the factory rear sight on many Beretta pistols and the Girsan Rigard MC (Beretta 92 clone).

Fits:
Girsan Rigard MC (Beretta 92 9mm clone)
Beretta 92 FS, 92 G, 92 FS Fusion, 92 Fusion Black, 92 Fusion Blu
Beretta 92 FS Inox, 92 A1, 92 FS Brigadier, 92 FS Brigadier Inox
Beretta 92 G Elite, 92 Compact, 92 Compact w/ Rail, 92 Compact w/ Rail Inox
Beretta 92 Vertec Inox, 92G-SD, 92X Centurion, 92X Compact, 92X Compact w/ Rail
Beretta 92X Full Size, 98 A1, 98 FS, 90 Series Inox
Beretta M9, M9 Exclusive, M9A1, M9A3, M9A3 Black, 98 FS Inox
Beretta M9 22LR

Does not fit (including but not limited to):
Beretta 92 optics-ready models (including RDO Compact Y22)
Beretta 92 FS Centennial, 92 Performance, 92 Performance Defensive
Beretta M9 A4 Centurion Y22
Taurus 92


Professional Installation Recommended

While it is possible to install this mount without a gunsmith, we strongly recommend hiring a qualified professional. Improper installation can result in screws working loose, loss of zero, damage to firearm or optic, and risk of personal injury.

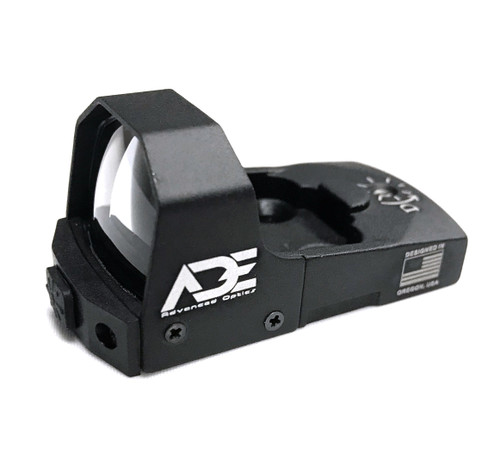

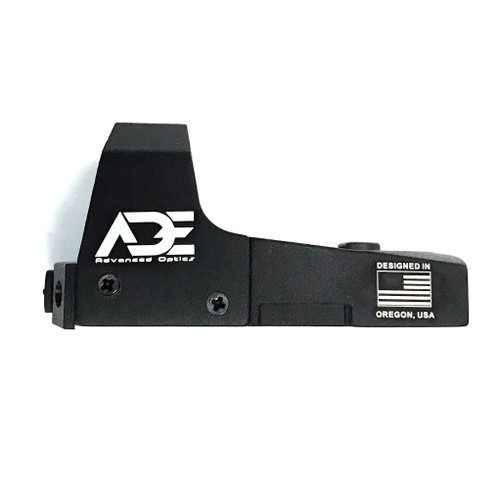

ADE RD3-006B-2 Green Dot Sight Features

  • Motion Activated System: Automatically goes to sleep after five minutes of inactivity to preserve battery, instantly powers back on at previous brightness setting upon detecting motion or vibration.

  • Front-located on/off switch makes it easier to press than side-mounted designs.

  • Precision-ground, polished lenses virtually eliminate parallax, providing a very clear, crisp sight picture.

  • Fully adjustable and lockable for windage and elevation with unlimited eye relief.

  • Shockproof and fogproof, suitable even as a backup on a long-range rifle scope.


Technical Specifications

Magnification: 1X
Sight window: 25mm x 16mm (.98" x .62")
Elevation adjustment: 3° or 190" @ 100 yds (524 cm @ 100 m)
Windage adjustment: 3° or 190" @ 100 yds (524 cm @ 100 m)
Click value: 1 MOA or 1" @ 100 yds (60 scale divisions per turn)

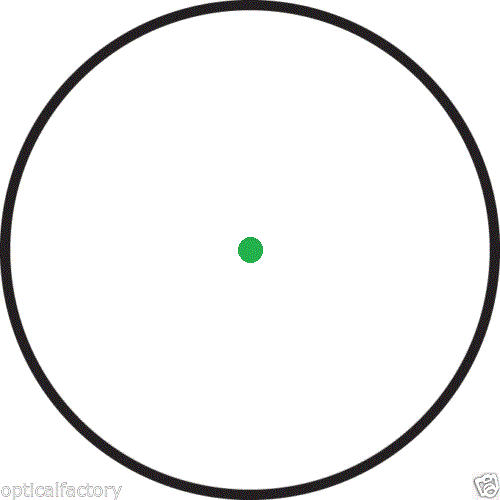

Dot subtension: 4 MOA (10.5 cm @ 100 m)
Parallax-free distance: approx. 50 yds
Recoil resistance: at least 1000 Gs
Operating temperature: -10°F to +130°F (-25°C to +55°C)
Storage temperature: -40°F to +160°F (-40°C to +70°C)
Power: one 3V CR2032 lithium battery (included)
Dimensions: 2.0" x 1.0" x 1.1" (52 x 26 x 28 mm)
Weight: 0.9 oz (25 g) without mount


Included in the Package

ADE RD3-006B-2 Green Dot Sight
Mounting plate for Beretta 92 Series / M9
Weaver/Picatinny-style mount
Allen wrench, screwdriver, adjusting disc, protective cap
CR2032 lithium battery (installed)
Extra rubber sealing ring for battery compartment
Operating instructions

2 Reviews Hide Reviews Show Reviews

  • 5
    ADE RD3-006B plus the beretta mount

    Posted by Ray Haffner on 6th May 2022

    A couple of months ago I purchased one of these units for my TX 22 and it has preformed flawlessly. That spured me on to purchase ANOYHER unit for my beretta M9. I dovetailed the mounting plate in myself, then mounted the unit, again flawless preformance, Tired old eyes will love this model, if not for the price. I have not had a single glitch with either of the units.

  • 5
    Red dot for Beretta 8045

    Posted by Lawrence Gibson on 9th Dec 2020

    This is a very nice product but you must make sure you fit it properly to the pistol. You can easily get it out of alignment if you’re not paying attention.
