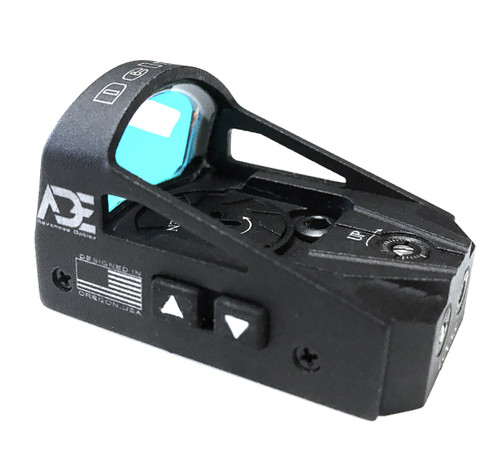

This is RD3-012G is GREEN DOT model, there is also a RD3-012 Red dot. The sight has multi brightness level with TWO adjustment button. One to turn bright up and one to turn down. Hold the down button for 3 secs to power off. Every time you turn on the dot it stays the same brightness level last time it was turned off
Fits optic cut/plate that is compatible with Vortex Venom/Burris Fastfire/Doctor footprint
Promotes rapid target acquisition while providing a precise point of aim; getting shots down range and on target fast. Top load System, no need to Remove the sight to change the Battery that requires re-sight in and waste ammo.

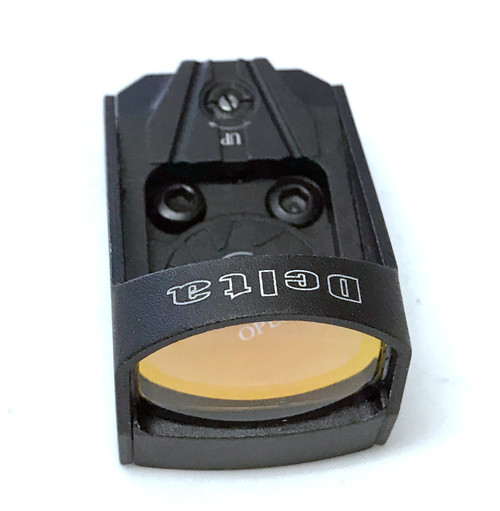

Top battery loading, no need to remove the red dot from the pistol.
IP67 Waterproof.
Red dot has multi brightness level with one adjustment button. Every time you turn on the dot it stays the same brightness level last time it was turned off
6 MOA dot. Come with Protected Cover, Adjustment wrench, Adjustment dailing plate, User Manual and Picatinny mounting plate. Additional mounting plates for handguns sells separately
Additional mounting plates for a specific handguns is not included and sold separately.
1.75" length x1.25" width x1.15" height. Shockproof, Fogproof and waterproof for 30 minutes under 4ft water.Feature 1 M.O.A wind age and elevation adjustments with audible click.
Ade model RD3-006,RD3-009,RD3-012,RD3-013,RD3-015 are designed to fit the slide/footprint of plate made for Vortex Venom,Burris Fastfire,Meopta,Docter,Insight,Eotech MRDS. Any Plate made for those brands also fits this sight. Ade also offers RD3-011 that has same footprint for Trijicon RMR mounting plate.
ADE RD3-006, RD3-009,RD3-012,RD3-013 do NOT fit Springfield HELLCAT OSP, because springfield Hellcat OSP red dot footprint is based on Shield RMS.

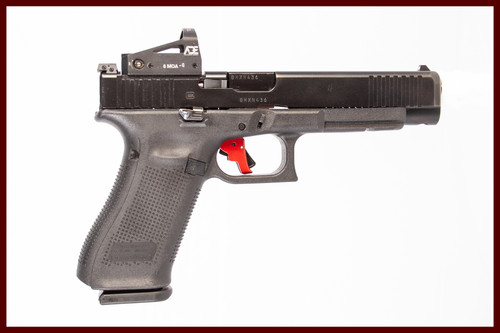

ADE sights has the footprint of Doctor/Vortex Venom type footprint. ADE RD3-006, RD3-009, RD3-012 and RD3-013 fit directly to "Optics Ready" pistols such as Glock MOS, Springfield OSP(non-hellcat), Canik TP9 SFX(non elite sc), Walter PPQ Q5 Match, FNX 45 Tactical, IWI Masada handguns that come with mounting plates that marked for DOCTOR/VORTEX VENOM type red dot. All mentioned above pistols must to be OPTICS READY model that comes with MOUNTING PLATE marked for DOCTOR/VORTEX. If not, user has to purchase after market mounting plate(not included with this red dot sight purchase) to replace the rear sight.
When you first receive the red dot. It has a picatinny mounting plate pre-assembled. Please use allen wrench provided to take out the 2 hex screws on the top behind the glass frame. It will disconnect the red dot from the picatinny mounting plate. You will then be able to attach the red dot to a variety of handgun mounting plates that are sold separately. There are many popular handguns on the market, due to the size difference of the handguns, each mounting plate is slightly different in dimensions. There are also many manufacturers making a variety of handgun plates that replace the rear sight, including ADE, Lakeline LLC, EGW, and Outerimpact. The screw comes with our red dot come with a pair of M3x6mm screws to connect to the pre-assembled picatinny mounting base. Some mounting plates made by other companies for specific handgun might need a longer screw such as M3x8mm or shorter screw such as M3x4mm depends on the thickness of the mounting plate/adapter. If you can’t get the screw to work properly, we recommend going to a local hardware store such as ACE Hardware to get the right size.
