Ade Advanced Optics RD3-006B-1 Green Dot Micro Mini Reflex Sight

ADE Green Dot Reflex Sight with Picatinny Mount and Compatible Handgun Mounting Plates

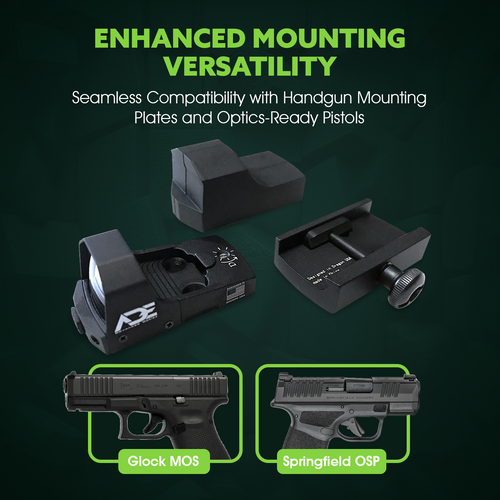

This green dot sight features a Picatinny mounting base and is also compatible with various handgun mounting plates that replace the rear sight dovetail. It is designed to fit the Doctor footprint plate/slide seamlessly, providing versatile mounting options.

Key Features

• Front-Mounted On/Off Switch: Conveniently positioned at the front for easy operation, unlike many red dots with side switches.

• 3 MOA Dot Size: Provides a precise aiming point.

• Five Illumination Settings: Adjustable brightness to suit different lighting conditions.

• Fully Adjustable & Lockable: Windage and elevation adjustments can be securely locked in place.

• Unlimited Eye Relief: Comfortable aiming without restriction.

• Powered by Included Lithium CR2032 Battery: Long-lasting and easy to replace.

• Motion Activated System: Automatically powers down after 5 minutes of inactivity, instantly wakes upon detecting motion or vibration to save battery life.

• Durability Improvements Since 2014: Enhanced recoil resistance and better zero retention, with updated front switch, battery housing, and hardware.

• Precision Ground and Polished Lenses: Minimize parallax for a clear, crisp sight picture.

• Shockproof and Fogproof: Designed for rugged use and all-weather conditions.

• Proudly Designed in Oregon.

Installation Notice

While the optic can be installed without professional help, we strongly recommend using a qualified gunsmith for installation. Improper installation may result in loose screws, failure to hold zero, damage to firearm or optic, or personal injury.

Astigmatism Warning

If you see anything other than a perfect round dot—such as a splashed dot, half-moon shape, multiple dots, or starburst—there’s a high chance you have undiagnosed astigmatism. This effect is caused by reflections of the LED on the lens. You can test this by taking a photo with your phone; if the photo shows a clear round dot, it confirms astigmatism.

Additional Compatibility Information for ADE Red Dots

• Models RD3-006 Huracan, RD3-009 Crusader, RD3-012 Delta, RD3-013 Bertrillium: Fit optic cuts/plates compatible with Vortex Venom, Burris Fastfire, and Doctor footprints (square optic cuts only).

• Models RD3-015 Zantitium, RD3-028 Ares: Fit plates compatible with Vortex Venom, Burris Fastfire, and Doctor footprints but do NOT fit slides due to larger size.

• Note: Some aftermarket slides, such as PSA Dagger, have curved Vortex Venom optic cuts, which are not compatible with ADE RD3-006, 009, 012, and 013. These ADE dots only fit squared Doctor footprint cuts.

• Models RD3-018 Spike, RD3-021 Nuwa, RD3-021Pro Nuwa Pro, RD3-030 Apollo: Fit optic cuts/plates compatible with Shield RMS/RMSC/Deltapoint Pro footprints.

• Model RD3-021c NUWAcc: Compatible with Trijicon RMRcc footprint.

• Models RD3-019 Stingray, RD3-020 Raptor, RD3-023 Valkyrie, RD3-029 Trumpet: Compatible with Trijicon RMR, SRO, Holosun 407C/507C footprints.

Setup Instructions

Upon receiving your ADE red dot sight, it may come pre-assembled with a Picatinny mounting plate (sometimes packaged separately depending on the model). To attach it to a handgun mounting plate (sold separately), use the provided Allen wrench to remove the two hex screws on top behind the glass frame to detach the Picatinny plate. Then mount the red dot onto the desired handgun plate.
