ADE RD3-009 Red Dot Sight - 6 MOA, Motion Activated, Shockproof, Waterproof
The ADE RD3-009 Red Dot Sight is engineered for rugged durability and high performance, offering a premium aiming experience for your firearm.
Key Features:
-
Fully Shockproof & Fogproof: Built to endure tough conditions, ensuring consistent performance in all environments.
-

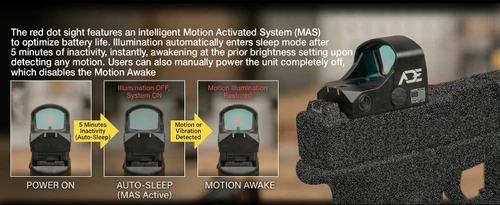

Motion Activated Technology (Motion Awake): Automatically powers down after 5 minutes of inactivity. It quickly activates when motion or vibration is detected, saving battery life while maintaining readiness.
-
6 MOA Red Dot: Ideal for quick target acquisition with a large, easy-to-see aiming point.
-
Waterproof: Rated for 30 minutes of waterproof operation at 1.7 feet depth.
-
High-Quality Lenses: Precision-ground and polished lenses eliminate parallax for a crystal-clear sight picture.
-
Adjustable Windage & Elevation: Fully adjustable with lockable controls to ensure precise and repeatable adjustments.
-
5 Illumination Settings: Adjustable brightness settings for optimal performance in varying lighting conditions.
Compatibility:
-

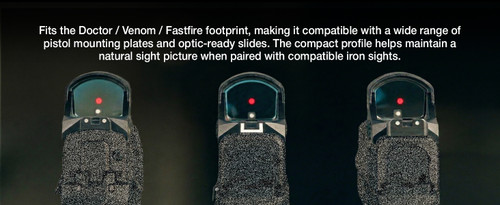

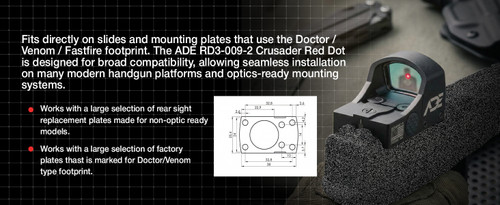

Footprint: ADE RD3-009 has the Doctor/Vortex Venom type footprint, not compatible with the Springfield HELLCAT OSP (which uses the Shield RMS footprint).
-
Direct Fit: The RD3-009 is designed to fit directly onto "Optics Ready" pistols such as:
-
Glock MOS
-
Springfield OSP (non-HELLCAT)
-
Canik TP9 SFX (non-elite SC)
-
Walther PPQ Q5 Match
-
FNX 45 Tactical
-
IWI Masada
Note: These pistols must be Optics Ready models that come with a mounting plate for DOCTOR/VORTEX VENOM type red dots.
-
-
For Non-Optics Ready Pistols: If your pistol doesn't have a compatible mounting plate, you will need an aftermarket plate to replace the rear sight (not included with this sight purchase). Brands such as ADE, Lakeline LLC, EGW, and Outerimpact offer various mounting plates for specific handguns.
Setup Instructions:
-

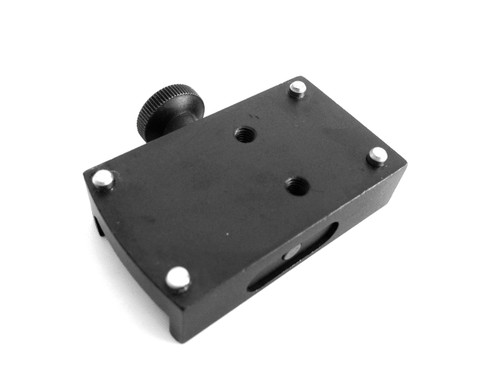

The RD3-009 comes with a pre-assembled Picatinny mounting plate.
-
To install, use the included Allen wrench to remove the 2 hex screws on the top behind the glass frame to disconnect the red dot from the Picatinny plate.
-
You can then attach the red dot to various handgun mounting plates (sold separately).
-
Screw Compatibility: The included screws are M3x6mm for use with the pre-assembled Picatinny plate. If using an aftermarket mounting plate, you might need longer (M3x8mm) or shorter (M3x4mm) screws depending on the plate thickness. For the right size, visit a local hardware store like ACE Hardware.
Specifications:
-
Magnification: 1X (no magnification)
-
Sight Window: 25mm x 16mm (.98" x .62")
-
Elevation & Windage Adjustment Range: 3° or 190" @ 100 yds (524 cm @ 100 m)
-
Adjustment Value per Scale Division: 1 MOA or 1" @ 100 yds with 60 scale divisions per turn
-
Subtension of Aiming Dot: 4 MOA (10.5 cm @ 100 m)
-
Parallax-Free Sighting Distance: Approximately 50 yards
-
Recoil Resistance: Can handle at least 1000 Gs of recoil
-
Operating Temperature Range: -10°F to +130°F (-25°C to +55°C)
-
Storage Temperature Range: -40°F to +160°F (-40°C to +70°C)
-
Power Supply: 3V CR2032 Lithium Battery (included)

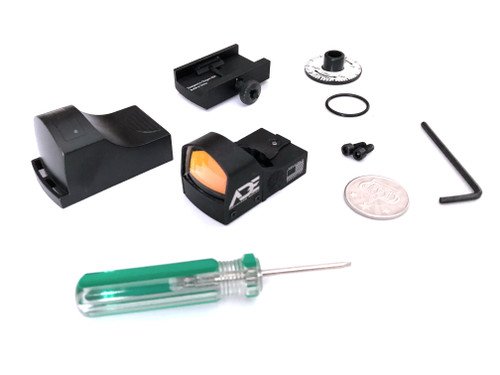

Included in the Box:
-
Allen wrench for tightening fasteners
-
Screwdriver and adjusting disc for setup
-
Protective cap for lens protection
-
One 3V CR2032 Lithium battery
-
Operating instructions
-
Weaver/Picatinny-style mount
-
Extra rubber sealing ring for battery compartment
Dimensions & Weight:
-
Dimensions: L 2.0" x W 1.0" x H 1.1" (52 mm x 26 mm x 28 mm)
-
Weight: 0.9 oz (25 g) without mounting materials
ADE RD3-006, RD3-009,RD3-012,RD3-013 do NOT fit Springfield HELLCAT OSP, because springfield Hellcat OSP red dot footprint is based on Shield RMS.
ADE sights has the footprint of Doctor/Vortex Venom type footprint. ADE RD3-006, RD3-009, RD3-012 and RD3-013 fit directly to "Optics Ready" pistols such as Glock MOS, Springfield OSP(non-hellcat), Canik TP9 SFX(non elite sc), Walter PPQ Q5 Match, FNX 45 Tactical, IWI Masada handguns that come with mounting plates that marked for DOCTOR/VORTEX VENOM type red dot. All mentioned above pistols must to be OPTICS READY model that comes with MOUNTING PLATE marked for DOCTOR/VORTEX. If not, user has to purchase after market mounting plate(not included with this red dot sight purchase) to replace the rear sight.
When you first receive the red dot. It has a picatinny mounting plate pre-assembled. Please use allen wrench provided to take out the 2 hex screws on the top behind the glass frame. It will disconnect the red dot from the picatinny mounting plate. You will then be able to attach the red dot to a variety of handgun mounting plates that are sold separately. There are many popular handguns on the market, due to the size difference of the handguns, each mounting plate is slightly different in dimensions. There are also many manufacturers making a variety of handgun plates that replace the rear sight, including ADE, Lakeline LLC, EGW, and Outerimpact. The screw comes with our red dot come with a pair of M3x6mm screws to connect to the pre-assembled picatinny mounting base. Some mounting plates made by other companies for specific handgun might need a longer screw such as M3x8mm or shorter screw such as M3x4mm depends on the thickness of the mounting plate/adapter. If you can’t get the screw to work properly, we recommend going to a local hardware store such as ACE Hardware to get the right size.
