Ade RD3-015 PRO (Zantitium PRO) RED Dot Reflex Sight + Optic Mounting Plate for All GLOCK (Non-MOS) Standard models, Canik TP9SF and Taurus GX4, G3C & G3 with factory steel sights pistol

$135.99
(No reviews yet) Write a Review
SKU:
RD3-015PRO + D1
Weight:
4.00 Ounces
Shipping:
Free Shipping

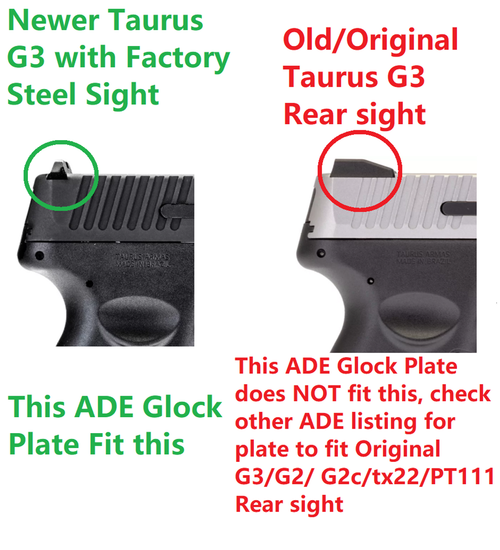

This listing comes with ADE sight, a picatinny plate(pre-assembled), and a pistol plate for Glock. This Glock plate also fits Taurus GX4, G3C & G3 with factory steel sights, because the rear sight dovetail between GX4, G3C & G3 with factory steel sights and glock are exact the same. Taurus made the dovetail dimension of above mentioned models based on the same specification of Glock rear sight, but made everything model else, in a different dimension. Such as G2, G2C, TX22, PT111, G3. Therefore if you have a Tuarus model other than Taurus GX4, G3C & G3 with factory steel sights, you will need a different mounting plate.

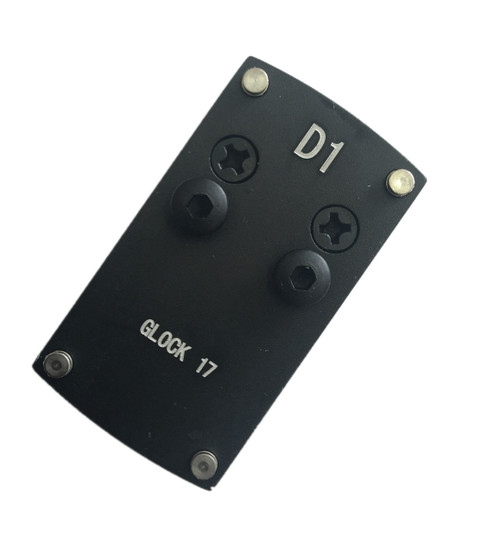

This glock mounting plate is for STANDARD glock models, it does not fits MOS (optics ready) glock or glocks with aftermarket slides. This glock mounting plate basically replaces the rear iron sight of the handgun. The rear sight dovetail is exactly the same for all glock model, therefore this plate fits all glocks from glock 17 to glock 43 to glock “100”.

If you have an aftermarket Glock slide, please ask the slide manufacturer what exact optic cut they put on their glock slide and let us know for us to confirm which red dot fits. If you have Glock MOS (optics ready) model, you need Glock official provided #01 or #05 plate(you can obtain from Glock for free) to attach the red dot directly, you do not need this optic plate we offer to replace the rear sight for standard Glock models.

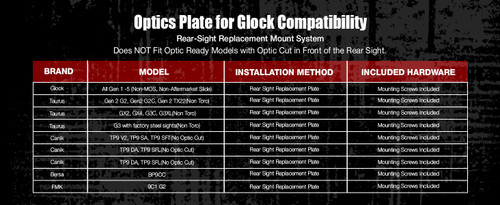

The included glock mount fits all generation Glocks below:
Glock 17
Glock 17L
Glock 19
Glock 19x
Glock 20
Glock 21
Glock 22
Glock 23
Glock 24
Glock 26
Glock 27
Glock 29
Glock 30
Glock 30 SF
Glock 31
Glock 32
Glock 33
Glock 34
Glock 35
Glock 36 (Our mount is wider than the slide, but it will still work)
Glock 37
Glock 38
Glock 39
Glock 41
Glock 42 (Our mount is wider than the slide, but it will still work)
Glock 43 (Our mount is wider than the slide, but it will still work)
Glock 43x (Our mount is wider than the slide, but it will still work)
Glock 44
Glock 45
Glock 46
Glock 48 (Our mount is wider than the slide, but it will still work)
Canik TP9SF/TP9SA
Bersa BP9CC
Tactical Solutions .22lr Conversion
Advantage Arms .22lr Conversion
Also fits
Taurus G3C
Taurus G3 with Factory Steel Sight
Taurus TX4

Does not fit Glock MOS models.
Glock 17 Gen 4 MOS
Glock 19 Gen 4 MOS
Glock 34 Gen 4 MOS
Glock 35 Gen 4 MOS
Glock 40 Gen 4 MOS
Glock 41 Gen 4 MOS
Glock 22 Gen 5 MOS
Glock 23 Gen 5 MOS
Glock 34 Gen 5 MOS
Glock 45 MOS
Glock 43x MOS
Glock 48 MOS

 Does not fit any Glock pistol with aftermarket slide(buyer need to verify what kind of optic cut the it has)
Does NOT fit any other Taurus models such as G2, G3, TX22, G2C, PT111
Does NOT fit any other Canik models such as TP9 SFX, TP9 Combat Elite, TP9 SFX METE, TP9 Elite SC

Below is an installation video created by a gunsmith installing the plate on his glock 17. It is the same method for other handguns such as 19, 20, 22, 30, 36, 40, 43 ect.
 https://www.youtube.com/watch?v=8QSxdZY723c&t=201s

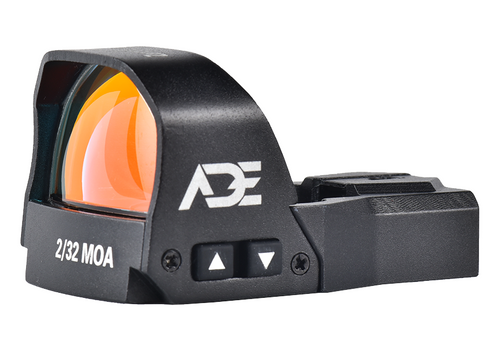

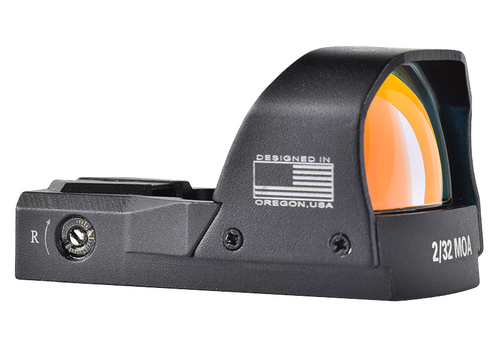

ADE is releasing the 2023 PRO SERIES for ADE RD3-015(2016-present) Zantitium red dot called Zantitium PRO(D3-015PRO). The additional features that the PRO series includes are Motion Activated System, IP67 Waterproof, and Multi Reticle Technology.

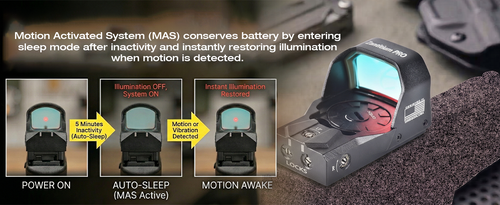

The ADE Zantitium PRO(D3-015PRO) has Motion Activated System. While Zantitium PRO is turned on, the red dot illumination goes to sleep after five minutes of inactivity, but when any motion or vibration is detected, it instantly switches on illumination at the previous brightness setting. User also has a option to manually turn the red dot power off to disable the Motion Activated System.

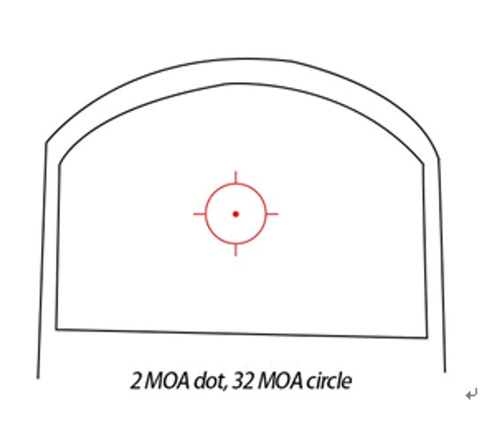

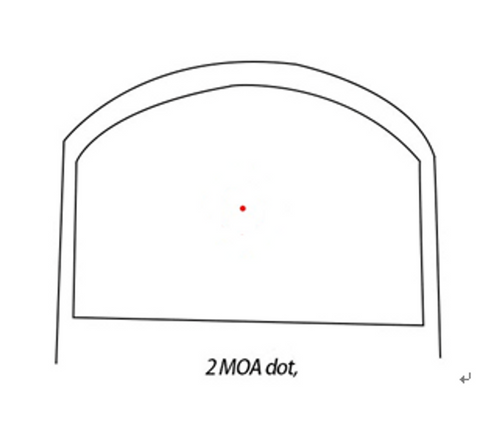

The ADE Zantitium PRO has Multi Reticle System. The reticle can be switched between a 32 MOA circle with 2 MOA dot, a 2 MOA dot only, or a 32 MOA ring only at the push of a button. Better yet, the same LED projects both reticles, so no re-zeroing is necessary. Operates with a single CR1632 battery. Press and Hold the DOWN switch for 3 seconds to manually turn on/off the power. Press and Hold the UP switch for 3 seconds to change reticle. Quick press Up/Down switches to adjust brightness.

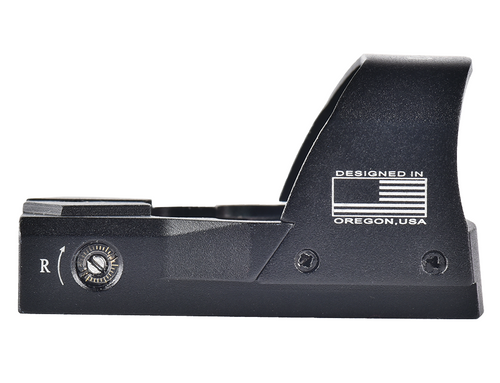

The ADE Zantitium Red dot sight is the biggest handgun sight on the market! Actual size is. 2.25" Length x 1.4" Width x 1.27" Height. It gives up to twice bigger window than other micro red dot. Keep in mind with the bigger than others size, please keep in mind when installed on micro-compact handgun will look bulky.



The size of the red dot is about 30% longer than other red dots, the window is also bigger. Therefore, it will NOT fit some Optics Ready handgun model that has a optic cut in front of the rear sight(will keep the rear sight to co-witness the red dot), such as Glock Mos, Springfield OSP. The longer length of this red dot does not sit in the pre-cut. It only fits the mounting plate that is made to REPLACE the rear sight and set on the top of the slide(not in the pre-cut).

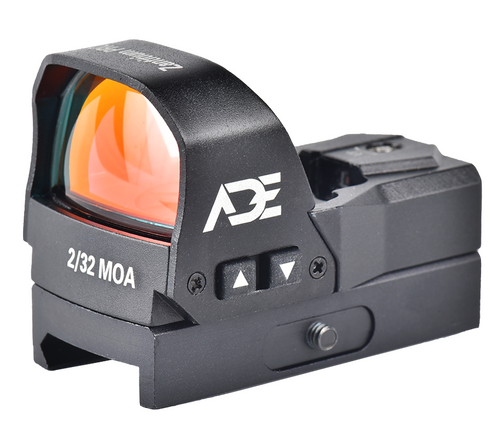

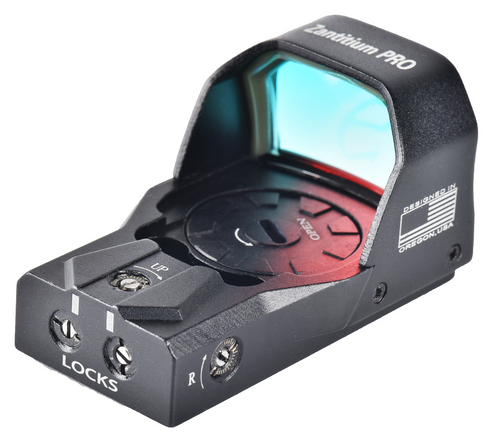

Top load System, no need to Remove the sight to change the Battery. Comes with Red dot, tool, removeable picatinny plate with two screws, cover, lens cloth and instruction manual. Fits pistol optic plate to replace the rear sight (DOES NOT FIT OPTICS READY PISTOL WITH CUT) that is compatible with Doctor/Vortex Venom/Burris Fastfire footprint. Does NOT fit RMR, Shield RMS type footprints plate.



Comes with a removeable picatinny plate tool, user manual, lens cloth, red dot cover, CR2032 battery, screws.



Optics plate for a specific firearm is not included.



  • Below are informations about ADE red dot footprint/fitment

  • Ade Advanced Optics first made its appearance in the firearms accessory industry by doing private label production for several Major manufacturers and retailers. During this period, Ade Advanced Optics began receiving requests from numerous customers for access to the affordable, high quality products that Ade Advanced Optics was capable of producing. By soliciting feedback from both clients and end users in 2010, Ade Advanced Optics was able to overcome the challenges a new company often faces when entering a global market and industry, especially one as competitive as the shooting, hunting, and outdoors industry.

  • ADE, RD3-006 Huracan,RD3-009 Crusader,RD3-012 Delta, RD3-013 Bertrillium fit optic cut/plate that is compatible with Vortex Venom/Burris Fastfire/Doctor footprint. RD3-015 Zantitium, RD3-028 Ares fit plate(does NOT fit slide due to larger size) that is compatible with Vortex Venom/Burris Fastfire/Doctor footprint.

    Please note: Some aftermarket slides have a precise optic cut based on the curved edge/corner of Vortex Venom, one of the common slide manufacturer is PSA Dagger(with Doctor cut). ADE and other brand red dots does NOT have the same curve as Vortex Venom, therefore ADE RD3-006, 009, 012, 013 do NOT fit the aftermarket slide with CURVED vortex venom optic cut. ADE red dots with Doctor footprints only fit squared optic cut that accept standard Doctor Footprint.

    ADE RD3-018 Spike, RD3-021 Nuwa(and RD3-021Pro NUWA Pro) RD3-030 Apollo fit optic cut/optic plate that is compatible with shield RMS/RMSC/Deltapoint Pro footprint.

    ADE RD3-021c NUWAcc fits optic cut/optic plate that is compatible with Trijicon RMRcc footprint

    ADE RD3-019 Stingray, RD3-020 Raptor, RD3-023 Valkyrie, RD3-029 Trumpet fit optic cut/optic plate/ that is compatible with Trijicon RMR/SRO/Holosun 407C/507C footprint
