- RD3-011 is compatible with handguns with mounting plates made for Trijicon RMR ONLY. It has the same footprint/cut/mounting plate as Trijicon RMR. We recommend OUTERIMPACT brand that their mounting plates are compatible with Trijicon RMR.
-
- This sight does not fits (set inside the grove/cut) the slide that is custom milled for trijicon rmr. This sight is larger than rmr in size. It only fits mounting plate that replace the rear sight, or the plate set above the slide for trijicon rmr footprint/screw pattern.
-
- This ADE RD3-011 comes with a picatinny mounting plate. When you first receive the red dot. It has a picatinny mounting plate pre-assembled. Please use the allen wrench provided to take out the 2 hex screws on the top behind the glass frame. It will disconnect the red dot from the picatinny mounting plate. You will then be able to attach the red dot to a variety of handgun mounting plates that are sold separately. This sight can only be mounted on optic plate that REPLACE the the rear sight, and sit above the slide. It does not fit the pre-cut on the optics ready pistol due to the :larger than traditional" micro red dot size. We recommend to use OUTERIMPACT optic plates following the trijicon rmr footprint.
- We have made several improvements since it's initial release in 2016. We have made it more durable to withstand recoil and improved the ability to hold zero. Designed in Oregon. Pistol require special mounting plates that are sold separately.
- This sight is slightly bigger than other micro handgun red dots such Vortex Venom. Actual size is. 2.25" x 1.4" x 1.27". It gives up to 2 times bigger window than other micro red dots. It can be used on a wide range of rifles, shotguns and pistols.
- 3 MOA Dot,Light and Compact.Operates with CR2032 battery(included).RD3-011 is different than other ADE models such as RD3-006,RD3-009,RD3-012,RD3-013,RD3-015 that have the same handgun mounting footprint as Vortex Venom,Burris Fastfire,Meopta, Docter,Insight. Ade does NOT make mounting plate for trijicon rmr pattern/footprint. All Ade handgun plates are for Vortex style footprint.
- Comes with a removable picatinny mounting base. Lens is over 1/2 thick and made of impact resistant optical grade glass. The NV button is special LED red dot that is invisible to human eyes, it is only visible through a night vision device.
-
The new Ade Advanced optics Crusader edition of optics is the highest quality line Ade Advanced optics carries. All of the Ade Advanced optics Revenger line is designed in the United States of America by a US military defense contractor using all state of the art circuitry and materials this is not your average sight. Quality Control is 10x that of the other lines offered by Ade Advanced optics or any other like company.
Originally The Revenger line of optics were designed for commercial/law enforcement use when first designed. Now available to the general consumer the Revenger edition line will fast become a popular line of optics where the average consumer is wanting more out of an optic they want mil-spec quality without the mil-spec price and with the Revenger line you get it. The Revenger line is all hand built and tested for a lifetime of heavy use. So when you need to depend upon a sight pick Revenger where diamonds last forever.
-
Lens is over 1/2 thick and made of impact resistant lens optical grade glass.
-
State of the art internal IC circuitry.
-
Made of aero-space grade 6061 T6 aluminum.
-
Top load battery compartment for keeping zero after battery replacement.
-
Positive click adjustments with dial indicator.
-
Recoil rated to exceed requirements magnum rifle usage.
-
IR night vision mode for use with all forms of night vision optics
-
- Model: RD3-11
- Magnification: 1.0x
- Tubeless Sight Window Lens Size: 22x33mm
- Exit Pupil: 22-33 mm
- Length: 66mm (2.6 inch)
- Width: 40mm (1.6 inch)
- Height: 42mm (1.7 inch)
- Weight (net): 115g (4.0 ounce)
- Eye Relief: Free, excellent for moving target and rapid shoot
- Field of View (ft@100yds): 138 feet
- Optics Coating: Multi Coated
- Reticle: Red dot and invisible night vision dot
- Brightness levels: Six
- Parallax: <3' at 50 yards
- Elevation Range: ± 20 MOA
- Windage Range: ± 20 MOA
- Shock proof, Rain Proof and Fog Proof
- High quality aluminum alloy 6061 t6
- Feature 1 M.O.A windage and elevation adjustments with audible click's
- Integrated 21mm weaver mount base

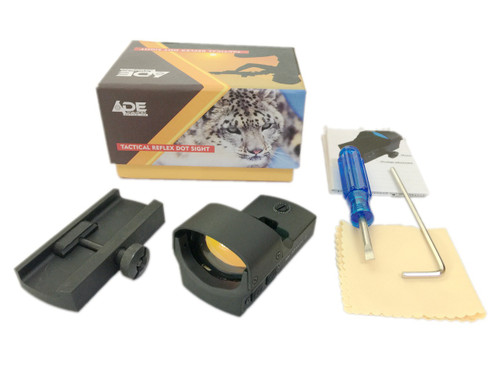

- Included items: Cleaning cloth, hex keys,2032 battery
7 Reviews Hide Reviews Show Reviews
-
RD3-011 red dot
purchased one of these a little over a year ago......installed on an AK....works well holds zero battery life seams good, So I just purchased 2 more and they also fit well , the finsh and function are great , would recommend for AR or AK !!!
-
Awesome so far. THANKS Tony
BIG ADE fan so far. Tony was extremely helpful and patient and answered all my questions. Ordering an ADE for my Sig next !!
-
RD3-011 and RD3-015
I did a lot of research before ordering the ADE RD3-015. Chosen for the wide field of view, easy adjustments and battery access, with an adjustable Red Dot visible in front of eye on AR15, and also at arm's length on SW40cal. I went from bore sighting to shooting 1/4in.placement on center at range after a few adjustments that was impossible with the micro Red Dot that came mounted on my Northstar 3x8 scope. I threw it away and put the 011 on it, and the more narrow profile ADE RD3-015 on the pistol and they are great for fast target acquisition.
-
Red Dot scope
Not the best reddot scope but it works good it's clear it zero good it works for close-quarters good that's a good scope for the money it's little thank you
-
handles 762x39
Mounted on AK pistol, holds zero! Perfect size for mini red dot! Did some custom work on mpap, like mount a rail on hinged dust cover, between iron sights! Works perfect!
-
A bit bigger than the typical mini red-dot sights
As said in the headline, this sight is bigger than the typical mini red-dot sights. This isn't a complaint, its just to point out that it is larger and probably not the most suitable for a handgun. However, for a rifle/carbine, this is a good match. I mounted one on a Hi-Point 9mm carbine and its a perfect match for cheek weld. The window is also larger than the typical mini red-dot which also makes it a good match for the carbine. I would estimate the size somewhere right between a typical mini red-dot and an Eotech. When mounted, the highest point of the window sits about 1-5/8 inches tall when measured from the top of the picatinny rail. The sight is roughly 2-1/2 inches long and about 1-5/8 inches at it's widest point. The on/off and brightness are controlled by a single button. Hold the button down for a second or two and the sight turns on. Short presses of the same button cycle it through the 6 brightness settings. Holding the button down for a second or two turns the sight back off. One neat feature is that the sight returns to the most recently used brightness setting when turned back on. the sight has a second button which operates just like the first however it controls the "NV" (night vision) modes. In a dark enough room I can see that the NV mode is working but I don't have night vision optics to test and evaluate this feature. The dot appears to be somewhere around 1 or 2 MOA with a little bit of flaring but not bad. Part of that flaring is likely my aging eyes. Another cool feature is the ability to change batteries without dismounting the sight which is a common necessity with many of the smaller red-dot sights. The elevation and windage adjustments have "click" type detents which to me, aid in sighting in. This also does away with the need for locking screws that are often times found on the smaller red-dot sights. In my opinion, if you're looking for a sight for your rifle/carbine then this is an excellent option. If it's for your handgun then I would consider something a bit smaller and lighter. About the only downside is the lack of a lens cover of any type for use when stored.
-
Built solid
Have not fired with this mounted yet, but just from handling I think itll be nore than fine. It is built like a high quality waterproof sight. Solid, but lightweight. Red dot is plenty bright and shuts off after an hour. As long as it holds up this is a bargain.
